Screws Charts MacBook Pro 13-inch 2020 2 TBT3

MacBook Pro 13-inch 2020 2 TBT3 - Screws Chart

923-04179
Screw, Bottom Case, Front Corner, Silver

Bottom Case (front corners) (2)

923-04177
Screw, Bottom Case, Rear/Back Corner, Silver

Bottom Case (rear/top corners) (2)

923-04174
Screw, Bottom Case, Rear/Back Corner, Space Gray

Bottom Case (rear/top corners) (2)

923-04175
Screw, Bottom Case, Front Corner, Space Gray

Bottom Case (front corners) (2)

923-04180
Screw, Bottom Case, Front Center, Silver

Bottom Case (front center) (2)

923-04176
Screw, Bottom Case, Front Center, Space Gray

Bottom Case (front center) (2)

923-01189
Screw, BMU Flex Cable, Torx T5

Battery (BMU) (1)

923-02513
Screw, I/O Board Cowling, Torx T3

L-Shaped Cowling (3)
Touch ID Upper Cowling (1)

923-03289
Screw, Cowling, Trackpad and Touch Bar, Tox T5

Trackpad Flex Cable Cowling (2)

923-01185
Screw, Spring Tensioner, Torx T3

Display Cable Spring Tensioners (4)

923-03526
Screw, Cowling, Audio Board Flex, Upper, Torx T5

923-03526 - Screws / Screw, Cowling, Audio Board Flex, Upper, Torx T5 for MacBook Pro 13-inch 2020 2 TBT3. Screw Location(s): Audio Board Flex Assembly Upper Cowling (1)

Audio Board Flex Assembly Upper Cowling (1)

923-03527
Screw, Cowling, Audio Board Flex, Lower, Torx T5

923-03527 - Screws / Screw, Cowling, Audio Board Flex, Lower, Torx T5 for MacBook Pro 13-inch 2020 2 TBT3. Screw Location(s): Audio Board Flex Assembly Lower Cowling (1)

Audio Board Flex Assembly Lower Cowling (1)

923-03554
Screw, Cowling, Touch ID, Lower, Torx T3

Touch ID Board Cowling (lower) (1)

923-04193
Screw, Torx T3, Cowling, eDP Connector to TCON board, 5PK

923-04193 - Screws / Screw, Torx T3, Cowling, eDP Connector to TCON board, 5PK for MacBook Pro 13-inch 2020 2 TBT3. Screw Location(s): eDP Connector to TCON Cowling (2)

eDP Connector to TCON Cowling (2)

923-01190
Screw, Cowling, TCON Flex, Torx T3

Display Cable (eDP) to Logic Board (2)

923-01407
Screw, Shoulder, M1.6, Stage, X379, Torx T5

Heatsink Springs (4)

923-03559
Screw, IO (USB-C) Board, Torx T5

I/O Board (USB-C/TBT3 Ports) (2)

923-03540
Screw, Speaker, Torx T5

Right Speaker (3)
Left Speaker (2)

923-01286
Screw, Display Clutch Cover, Torx T3

923-01286 - Screws / Screw, Display Clutch Cover, Torx T3 for MacBook Pro 13-inch 2020 2 TBT3. Screw Location(s): Left Display Clutch/Hinge Covers (2), Right Display Clutch/Hinge Covers (2)

Left Display Clutch/Hinge Covers (2)
Right Display Clutch/Hinge Covers (2)

923-04191
Screw, 1IPR / P2, Vent-Antenna Module

Vent/Antenna Module (12)

923-03284
Screw, TCON Board, Torx T5

TCON Board (4)

923-04256
Screw, Torx T5, Logic Board to Antenna Ground Clip

923-04256 - Screws / Screw, Torx T5, Logic Board to Antenna Ground Clip for MacBook Pro 13-inch 2020 2 TBT3. Screw Location(s): Logic Board to Antenna Ground Clip (1)

Logic Board to Antenna Ground Clip (1)

923-03286
Screw, Cowling, eDP Flex, Lower, Torx T3

Cowling eDP Flex Cable (2)

923-04257
Screw, Torx T5, Logic Board to Top Case, upper corner, 5PK

923-04257 - Screws / Screw, Torx T5, Logic Board to Top Case, upper corner, 5PK for MacBook Pro 13-inch 2020 2 TBT3. Screw Location(s): Logic Board to Top Case (Upper Corner) (1)

Logic Board to Top Case (Upper Corner) (1)

923-04255
Screw, Torx T5, Logic Board to Top Case , 5PK

Logic Board to Top Case (3)

923-03290
Screw, Heatsink, Hex 3mm

Heatsink Arm (1)

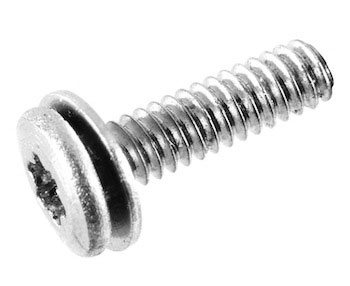

923-04188
Screw, Torx T3, Audio Board Flex Assembly

Audio Board Flex Cable Assembly (2)

923-04187
Screw, Fan, 5PK

CPU Cooling Fan (4)

923-03910
Screw, Touch ID, Outer, Torx T3

Touch ID (Outside/Outer) (4)

923-03911
Screw, Touch ID, Middle, Torx T3

Touch ID (Middle/Inner) (2)

923-04189
Screw, Torx T8, Display Clutch to Top Case

Display Clutch to Top Case (6)

923-03557
Screw, Trackpad, Middle, Torx T5

Trackpad (Middle) (Shorter) (2)

923-03558
Screw, Trackpad, Side, Torx T5

Trackpad (Side) (8)
