Screws Charts MacBook Air M1 2020

MacBook Air M1 2020 - Screws Chart

923-04004
Screw, Cowling, Logic Board to TCON, Torx T3

eDP Flex Cable Cowling (2)

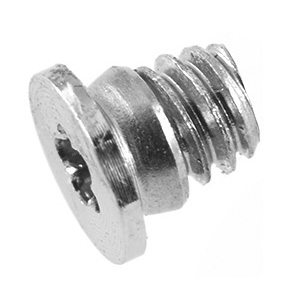

923-02817
Screw, Bottom Case, Front Center, Pentalobe P5, Silver

Bottom Case (front center and sides) (6)

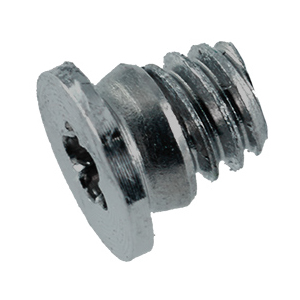

923-02814
Screw, Bottom Case, Front Center, Pentalobe P5, Space Gray

923-02814 - Screws / Screw, Bottom Case, Front Center, Pentalobe P5, Space Gray for MacBook Air M1 2020. Screw Location(s): Bottom Case (front center and sides) (6)

Bottom Case (front center and sides) (6)

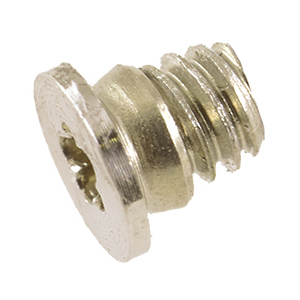

923-02820
Screw, Bottom Case, Front Center, Pentalobe P5, Gold

Bottom Case (front center and sides) (6)

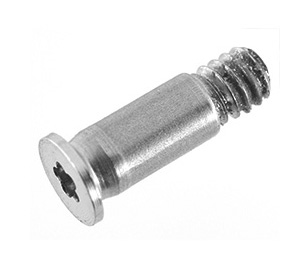

923-02818
Screw, Bottom Case, Rear Corner, Pentalobe P5, Silver

Bottom Case (rear corner) (2)

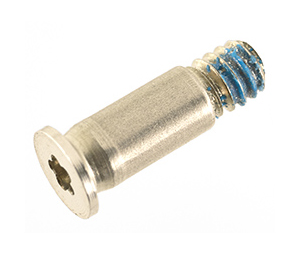

923-02821
Screw, Bottom Case, Rear Corner, Pentalobe P5, Gold

Bottom Case (rear corner) (2)

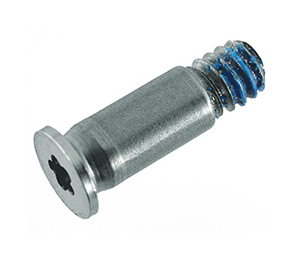

923-02815
Screw, Bottom Case, Rear Corner, Pentalobe P5, Space Gray

Bottom Case (rear corner) (2)

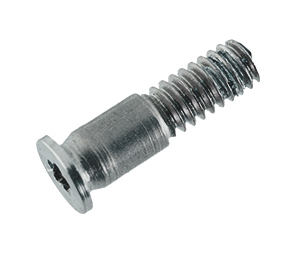

923-02816
Screw, Bottom Case, Rear Center, Pentalobe P5, Space Gray

Bottom Case (rear center) (2)

923-02819
Screw, Bottom Case, Rear Center, Pentalobe P5, Silver

Bottom Case (rear center) (2)

923-02822
Screw, Bottom Case, Rear Center, Pentalobe P5, Gold

Bottom Case (rear center) (2)

923-04003
Screw, Common Cowling, Torx T3

923-04003 - Screws / Screw, Common Cowling, Torx T3 for MacBook Air M1 2020. Screw Location(s): Wireless antennas cowling (1), IPD flex cable cowling (2), I/O board cowling (2), Audio board/Touch ID cowling (3)

Wireless antennas cowling (1)
IPD flex cable cowling (2)
I/O board cowling (2)
Audio board/Touch ID cowling (3)

923-05305
Screw, Heat Spreader (Heatsink) Bracket, Torx T5

Logic Board Heatsink (2)

923-02893
Screw, Logic Board Bumper, Torx T5

Logic Board (1)

923-03999
Screw, Logic Board, Tall, Torx T5

Logic Board (3)

923-03998
Screw, Vent Antenna Module, Torx T5

Vent antenna module (4)

923-02925
Screw, M1.6, TCON Bumper, Torx T3

Display connector (TCON) (2)

923-04006
Screw, Speaker Battery Tray, Torx T3

Left Speaker (1)
Right Speaker (1)

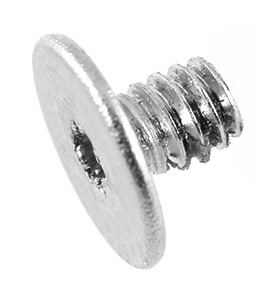

923-02924
Screw, Battery Tray, Torx T3

Battery to Top Case (2)

923-03002
Screw, Trackpad, Center, Torx T5

Trackpad (center) (1)

923-02880
Screw, Trackpad, Torx T5

Trackpad (outer) (8)

923-02889
Screw, I/O Board (USB-C) to Top Case, Torx T5

I/O board (USB-C) to top case (2)

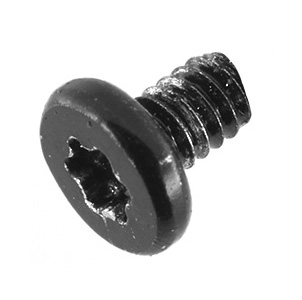

923-02884
Screw, Audio Board, Torx T3

Audio board to top case (inner) (1)

923-04005
Screw, Audio Board

Audio board to top case (outer) (2)

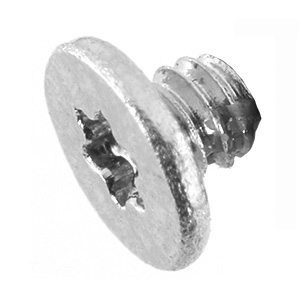

923-02888
Screw, Touch ID Flexure, Torx T3

Touch ID flexure (6)

923-02894
Screw, Display Clutch Cover, Torx T8

923-02894 - Screws / Screw, Display Clutch Cover, Torx T8 for MacBook Air M1 2020. Screw Location(s): Left display hinge (clutch) (3), Right display hinge (clutch) (3)

Left display hinge (clutch) (3)
Right display hinge (clutch) (3)

923-02895
Screw, Cowling, eDP / TCON to Logic Board, Torx T3

eDP flex cable to logic board (2)
