Screws Charts MacBook Air Retina 13-inch 2019

MacBook Air Retina 13-inch 2019 - Screws Chart

999-0006
Screws Full Set/Kit, 50+ Pieces

999-0006 - Screws / Screws Full Set/Kit, 50+ Pieces for MacBook Air Retina 13-inch 2019. Screw Location(s):

923-02814
Screw, Bottom Case, Front Center, Pentalobe P5, Space Gray

923-02814 - Screws / Screw, Bottom Case, Front Center, Pentalobe P5, Space Gray for MacBook Air Retina 13-inch 2019. Screw Location(s): Bottom Case (front center and sides) (6)

Bottom Case (front center and sides) (6)

923-02817
Screw, Bottom Case, Front Center, Pentalobe P5, Silver

923-02817 - Screws / Screw, Bottom Case, Front Center, Pentalobe P5, Silver for MacBook Air Retina 13-inch 2019. Screw Location(s): Bottom Case (front center and sides) (6)

Bottom Case (front center and sides) (6)

923-02820
Screw, Bottom Case, Front Center, Pentalobe P5, Gold

923-02820 - Screws / Screw, Bottom Case, Front Center, Pentalobe P5, Gold for MacBook Air Retina 13-inch 2019. Screw Location(s): Bottom Case (front center and sides) (6)

Bottom Case (front center and sides) (6)

923-02815
Screw, Bottom Case, Rear Corner, Pentalobe P5, Space Gray

923-02815 - Screws / Screw, Bottom Case, Rear Corner, Pentalobe P5, Space Gray for MacBook Air Retina 13-inch 2019. Screw Location(s): Bottom Case (rear corner) (2)

Bottom Case (rear corner) (2)

923-02818
Screw, Bottom Case, Rear Corner, Pentalobe P5, Silver

Bottom Case (rear corner) (2)

923-02821
Screw, Bottom Case, Rear Corner, Pentalobe P5, Gold

Bottom Case (rear corner) (2)

923-02816
Screw, Bottom Case, Rear Center, Pentalobe P5, Space Gray

923-02816 - Screws / Screw, Bottom Case, Rear Center, Pentalobe P5, Space Gray for MacBook Air Retina 13-inch 2019. Screw Location(s): Bottom Case (rear center) (2)

Bottom Case (rear center) (2)

923-02819
Screw, Bottom Case, Rear Center, Pentalobe P5, Silver

Bottom Case (rear center) (2)

923-02822
Screw, Bottom Case, Rear Center, Pentalobe P5, Gold

Bottom Case (rear center) (2)

923-02885
Screw, Cowling, Common, Torx T3

923-02885 - Screws / Screw, Cowling, Common, Torx T3 for MacBook Air Retina 13-inch 2019. Screw Location(s): Wireless antennas cowling (2), IPD flex cable cowling (2), eDP cowling (2), I/O board cowling (2), Audio board/Touch ID cowling (3)

Wireless antennas cowling (2)
IPD flex cable cowling (2)
eDP cowling (2)
I/O board cowling (2)
Audio board/Touch ID cowling (3)

923-02891
Screw, Logic Board, Tall, Torx T5

Logic Board (3)

923-02893
Screw, Logic Board Bumper, Torx T5

Logic Board (1)

923-02892
Screw, Logic Board, Short, Torx T5

Logic board (3)

923-02900
Screw, Vent/Antenna Module

Vent antenna module (4)

923-02923
Screw, Vent Antenna

Vent antenna module (4)

923-02925
Screw, M1.6, TCON Bumper, Torx T3

Display connector (TCON) (2)

923-02924
Screw, Battery Tray, Torx T3

Battery (4)

923-03002
Screw, Trackpad, Center, Torx T5

Trackpad (center) (1)

923-02880
Screw, Trackpad, Torx T5

Trackpad (outer) (8)

923-02889
Screw, I/O Board (USB-C) to Top Case, Torx T5

I/O board (USB-C) to top case (2)

923-02884
Screw, Audio Board, Torx T3

Audio board to top case (inner) (1)

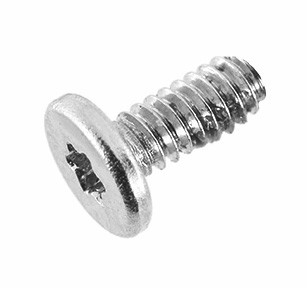

923-02881
Screw, Audio Board, Torx T5

Audio board to top case (outer) (2)

923-02886
Screw, Fan, Tall, Torx T5

Fan to top case (inner) (2)

923-02887
Screw, Fan, Short, Torx T5

Fan to top case (outer) (1)

923-02888
Screw, Touch ID Flexure, Torx T3

Touch ID flexure (6)

923-02894
Screw, Display Clutch Cover, Torx T8

923-02894 - Screws / Screw, Display Clutch Cover, Torx T8 for MacBook Air Retina 13-inch 2019. Screw Location(s): Left display hinge (clutch) (3), Right display hinge (clutch) (3)

Left display hinge (clutch) (3)
Right display hinge (clutch) (3)

923-02895
Screw, Cowling, eDP / TCON to Logic Board, Torx T3

eDP flex cable to logic board (2)

999-0006 Screws Full Set/Kit, 50+ Pieces	923-02814 Screw, Bottom Case, Front Center, Pentalobe P5, Space Gray Bottom Case (front center and sides) (6)	923-02817 Screw, Bottom Case, Front Center, Pentalobe P5, Silver Bottom Case (front center and sides) (6)
923-02820 Screw, Bottom Case, Front Center, Pentalobe P5, Gold Bottom Case (front center and sides) (6)	923-02815 Screw, Bottom Case, Rear Corner, Pentalobe P5, Space Gray Bottom Case (rear corner) (2)	923-02818 Screw, Bottom Case, Rear Corner, Pentalobe P5, Silver Bottom Case (rear corner) (2)
923-02821 Screw, Bottom Case, Rear Corner, Pentalobe P5, Gold Bottom Case (rear corner) (2)	923-02816 Screw, Bottom Case, Rear Center, Pentalobe P5, Space Gray Bottom Case (rear center) (2)	923-02819 Screw, Bottom Case, Rear Center, Pentalobe P5, Silver Bottom Case (rear center) (2)
923-02822 Screw, Bottom Case, Rear Center, Pentalobe P5, Gold Bottom Case (rear center) (2)	923-02885 Screw, Cowling, Common, Torx T3 Wireless antennas cowling (2) IPD flex cable cowling (2) eDP cowling (2) I/O board cowling (2) Audio board/Touch ID cowling (3)	923-02891 Screw, Logic Board, Tall, Torx T5 Logic Board (3)
923-02893 Screw, Logic Board Bumper, Torx T5 Logic Board (1)	923-02892 Screw, Logic Board, Short, Torx T5 Logic board (3)	923-02900 Screw, Vent/Antenna Module Vent antenna module (4)
923-02923 Screw, Vent Antenna Vent antenna module (4)	923-02925 Screw, M1.6, TCON Bumper, Torx T3 Display connector (TCON) (2)	923-02924 Screw, Battery Tray, Torx T3 Battery (4)
923-03002 Screw, Trackpad, Center, Torx T5 Trackpad (center) (1)	923-02880 Screw, Trackpad, Torx T5 Trackpad (outer) (8)	923-02889 Screw, I/O Board (USB-C) to Top Case, Torx T5 I/O board (USB-C) to top case (2)
923-02884 Screw, Audio Board, Torx T3 Audio board to top case (inner) (1)	923-02881 Screw, Audio Board, Torx T5 Audio board to top case (outer) (2)	923-02886 Screw, Fan, Tall, Torx T5 Fan to top case (inner) (2)
923-02887 Screw, Fan, Short, Torx T5 Fan to top case (outer) (1)	923-02888 Screw, Touch ID Flexure, Torx T3 Touch ID flexure (6)	923-02894 Screw, Display Clutch Cover, Torx T8 Left display hinge (clutch) (3) Right display hinge (clutch) (3)
923-02895 Screw, Cowling, eDP / TCON to Logic Board, Torx T3 eDP flex cable to logic board (2)
