Screws Charts MacBook Air 11-inch Early 2015

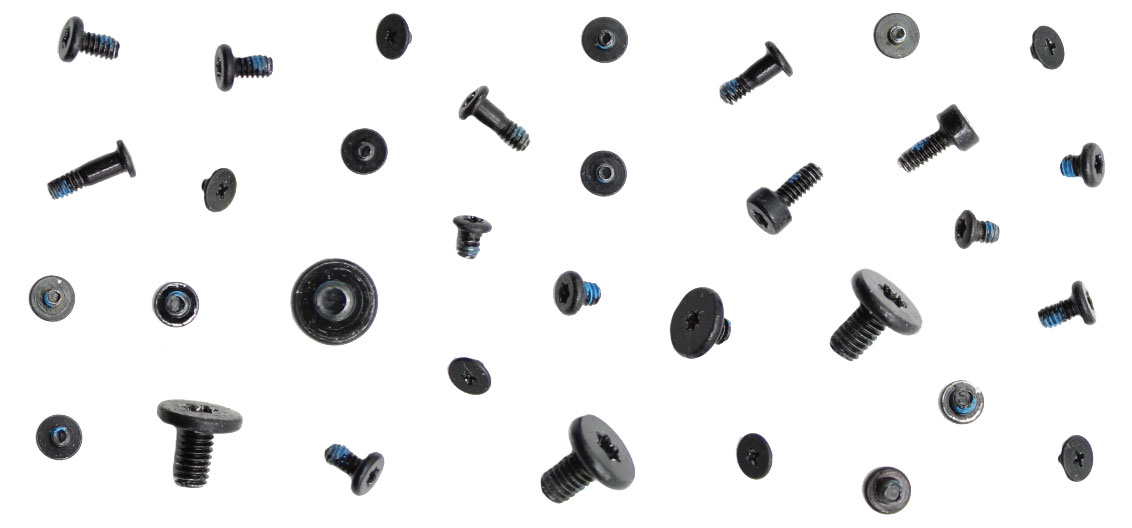

MacBook Air 11-inch Early 2015 - Screws Chart

922-9689 - Screws / Screw, Battery, Torx T5, Rear for MacBook Air 11-inch Early 2015. Screw Location(s): Battery to Top Case (rear) (2)
Battery to Top Case (rear) (2)
922-9690 - Screws / Screw, Battery, Front, Torx T5 for MacBook Air 11-inch Early 2015. Screw Location(s): Battery to Top Case (front) (2)
Battery to Top Case (front) (2)
922-9691 - Screws / Screw, Fan for MacBook Air 11-inch Early 2015. Screw Location(s): Fan to Top Case (1), Fan to I/O Board (1)
Fan to Top Case (1)
Fan to I/O Board (1)
922-9692 - Screws / Screw, Torx T5, 3.62 mm for MacBook Air 11-inch Early 2015. Screw Location(s): Fan to Logic Board (1), I/O Board to Top Case (1), Logic Board to Top Case (3)
Fan to Logic Board (1)
I/O Board to Top Case (1)
Logic Board to Top Case (3)
922-9693 - Screws / Screw, Torx T5, 6.02 mm for MacBook Air 11-inch Early 2015. Screw Location(s): Battery to Top Case (center) (1)
Battery to Top Case (center) (1)
923-00501 - Screws / Screw Thermal, T5 for MacBook Air 11-inch Early 2015. Screw Location(s): Heatsink to Logic Board (4)
Heatsink to Logic Board (4)
922-9732 - Screws / Screw, Trackpad, Torx T5 for MacBook Air 11-inch Early 2015. Screw Location(s): Trackpad (center) (1)
Trackpad (center) (1)
922-9651 - Screws / Screw, 2 x 2mm, Torx T5 for MacBook Air 11-inch Early 2015. Screw Location(s): Solid State Drive (SSD) (1), AirPort/Bluetooth (Wireless) Card (1)
Solid State Drive (SSD) (1)
AirPort/Bluetooth (Wireless) Card (1)
922-9686 - Screws / Screw, Cosmetic, Long, Pentalobe for MacBook Air 11-inch Early 2015. Screw Location(s): Bottom Case Exterior (2)
Bottom Case Exterior (2)
922-9689 - Screws / Screw, Battery, Torx T5, Rear for MacBook Air 11-inch Early 2015. Screw Location(s): Battery to Top Case (rear) (2)
Battery to Top Case (rear) (2)
922-9690 - Screws / Screw, Battery, Front, Torx T5 for MacBook Air 11-inch Early 2015. Screw Location(s): Battery to Top Case (front) (2)
Battery to Top Case (front) (2)
922-9691 - Screws / Screw, Fan for MacBook Air 11-inch Early 2015. Screw Location(s): Fan to Top Case (1), Fan to I/O Board (1)
Fan to Top Case (1)
Fan to I/O Board (1)
922-9692 - Screws / Screw, Torx T5, 3.62 mm for MacBook Air 11-inch Early 2015. Screw Location(s): Fan to Logic Board (1), I/O Board to Top Case (1), Logic Board to Top Case (3)
Fan to Logic Board (1)
I/O Board to Top Case (1)
Logic Board to Top Case (3)
922-9693 - Screws / Screw, Torx T5, 6.02 mm for MacBook Air 11-inch Early 2015. Screw Location(s): Battery to Top Case (center) (1)
Battery to Top Case (center) (1)
923-00501 - Screws / Screw Thermal, T5 for MacBook Air 11-inch Early 2015. Screw Location(s): Heatsink to Logic Board (4)
Heatsink to Logic Board (4)
922-9732 - Screws / Screw, Trackpad, Torx T5 for MacBook Air 11-inch Early 2015. Screw Location(s): Trackpad (center) (1)
Trackpad (center) (1)
922-9651 - Screws / Screw, 2 x 2mm, Torx T5 for MacBook Air 11-inch Early 2015. Screw Location(s): Solid State Drive (SSD) (1), AirPort/Bluetooth (Wireless) Card (1)
Solid State Drive (SSD) (1)
AirPort/Bluetooth (Wireless) Card (1)
SCREWS FOR MACBOOK AIR 11-INCH EARLY 2015 (13 items)WWW.MACRECYCLING.COM
