Screws Full Set/Kit, 32+ Pieces
Screws Full Set/Kit, 32+ Pieces 999-0003

Screws Full Set/Kit, 32+ Pieces

Part Number: 999-0003
Brand: Apple
Availability: In Stock
Ships: Within 48 hours
Total of 0 Stars Rating for Mac Recycling Screws Full Set/Kit, 32+ Pieces

$29.00

CONDITION:  Used, fully tested



Details
Warranty:1 Year Primary Category: Screws / Standoffs Notes: Includes most screws (at least 32pcs). Bottom case screws (10) are sold separately.
Description
Bottom case screws (10) are sold separately.

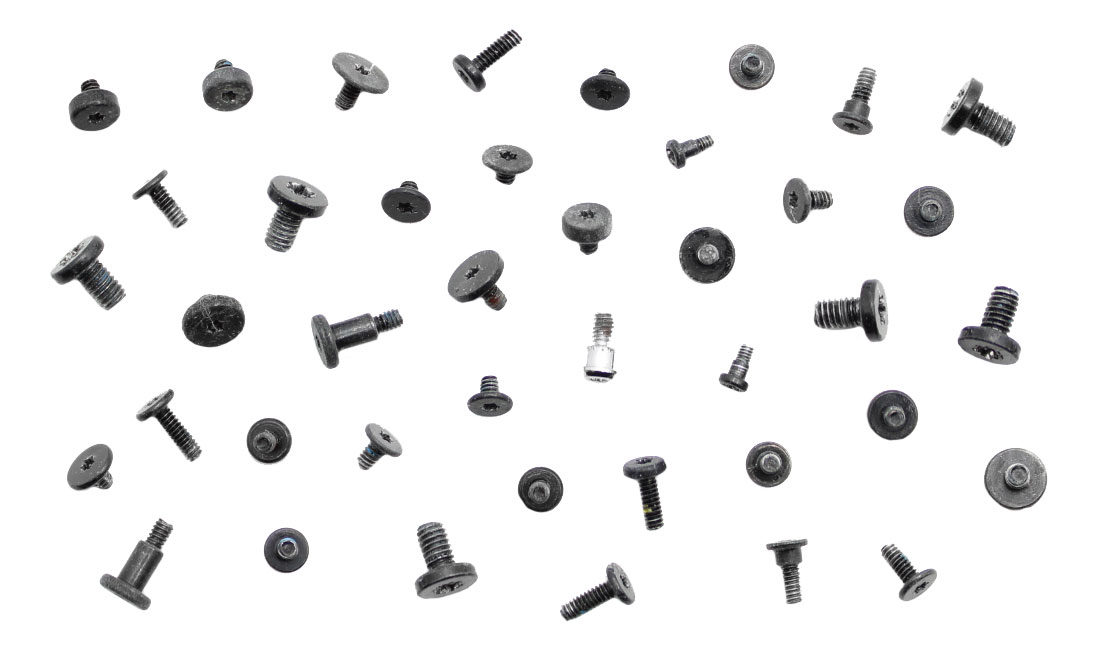

At least 90% of the screws shown on the table below are included in this set.
Part #
Description
Use / Location
923-0161
Screw, M2 x 1.8, Torx T5
Solid State Drive (SSD) (1)
922-9651
Screw, 2 x 2mm, Torx T5
Wireless Card (1)
923-0149
Screw, M1.6 x 3.6, Torx T5, Large Head
Right Fan (thick head) (1)
923-0133
Screw, M1.6 x 3.0, Torx T5, Black
Right Fan (1)
Left Fan (1)
923-0162
Screw, M1.6 x 4.5, Torx T5
Left Fan (front) (1)
Right Fan (front) (1)
923-0158
Screw, M1.6 x 2.95, Torx T5
Left fan (thin head) (1)
923-0135
Screw, M1.6 x 2.6, Torx T5, Black
Display End Caps (2)
I/O board (2)
923-0148
Screw, M1.6 x 3.6, Torx T5, Nickel
Heatsink to Top Case (I/O Board Side) (1)
923-0147
Screw, M1.6 x 3.6, T5, Ground Cap
Heatsink to Logic Board / Top Case (1)
923-0145
Screw, M1.6 x 4.9, Torx T5, Black
Logic Board (rear) (2)
923-0144
Screw, M1.6x3.6, Torx T5, Black
Logic Board (1)
MagSafe 2 Board (2)
923-0140
Screw, M1.6 x 2.0, Torx T5, Black
Left fan duct (1)
Logic board (1)
923-0141
Screw, M1.6 x 1.8, Torx T5, Black
Heatsink (thick head) (6)
923-0159
Screw, M1.6 x 1.8, Heatsink, Short Head
Heatsink (thin head) (2)
923-0143
Screw, M1.6, Speaker, Torx T5, Black
Left Speaker (rear) (1)
Right Speaker (rear) (1)
923-0146
Screw, M1.6 x 3.55, Torx T5, Speaker
Left Speaker (center) (1)
Right Speaker (center) (1)
923-0138
Screw, M1.6, Speaker, Front, Torx T5
Left Speaker (front) (1)
Right Speaker (front) (1)
923-0142
Screw, M1.2 x 3.0
Audio Board / Jack to Top Case (2)
923-0111
Ground Rubber Screw Cap
Heatsink Screw (1)
923-0139
Screw, 2.5 x 3.9 mm, Torx T8, Black
Display Hinge Clutch (6)
Compatibility
MacBook Pro (Retina, 15-inch, Early 2013)
ME664LL/A
ME665LL/A
ME698LL/A
A1398
2673
MacBookPro10,1
2.4 GHz Intel Core i7
2.7 GHz Intel Core i7
2.8 GHz Intel Core i7
MacBook Pro (Retina, 15-inch, Mid 2012)
MC975LL/A
MC976LL/A
MD831LL/A
A1398
2512
MacBookPro10,1
2.3 GHz Intel Core i7
2.6 GHz Intel Core i7
2.7 GHz Intel Core i7
