Exploded View MacBook Air Retina 13-inch 2019

MacBook Air Retina 13-inch 2019 - Exploded View



Bottom Case
923-02827, 923-02826, 923-02825

Bottom Case 923-02827, 923-02826, 923-02825 for MacBook Air Retina 13-inch 2019

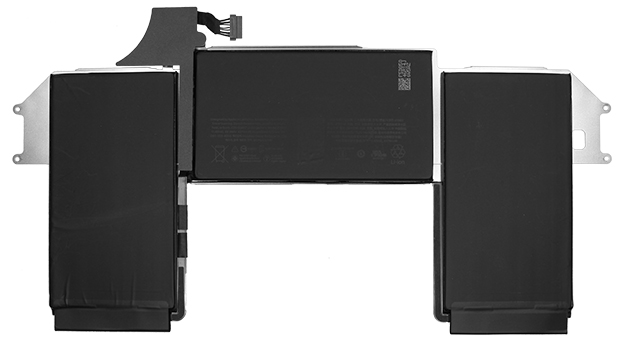

Battery
923-03022

Battery 923-03022 for MacBook Air Retina 13-inch 2019

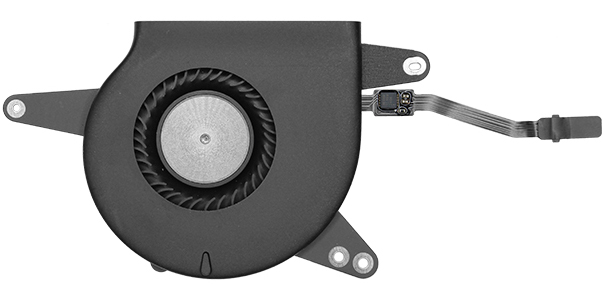

CPU Cooling Fan
923-02438

CPU Cooling Fan 923-02438 for MacBook Air Retina 13-inch 2019
Speaker (Pair)
923-02441

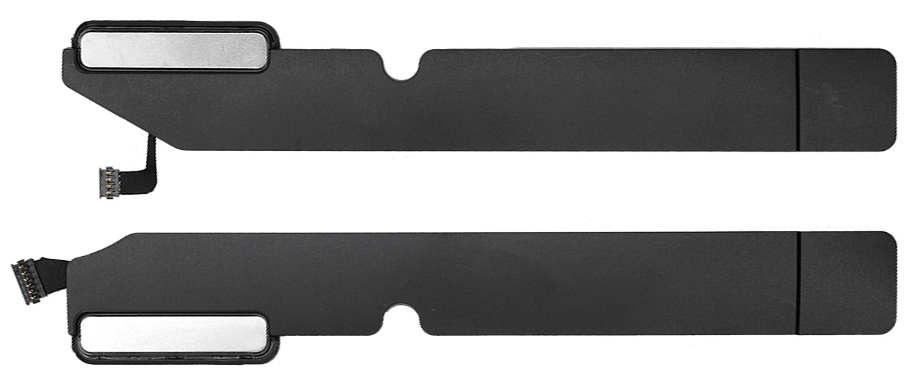

Speaker (Pair) 923-02441 for MacBook Air Retina 13-inch 2019

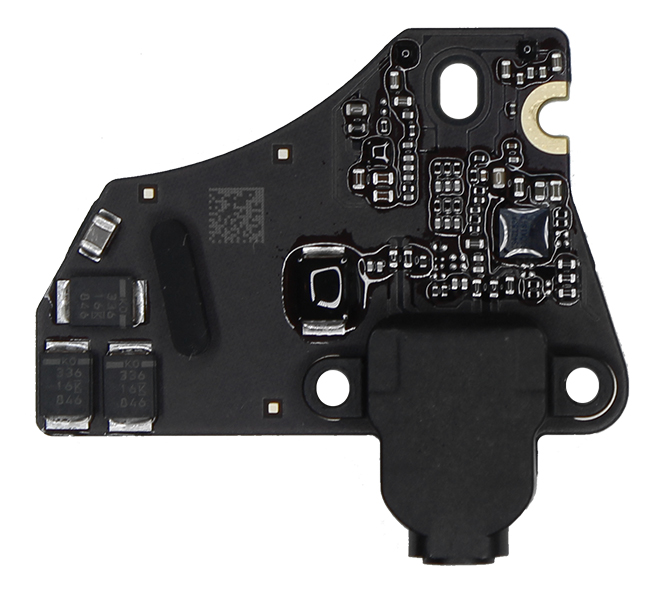

Audio Board
923-02823, 923-02824

Audio Board 923-02823, 923-02824 for MacBook Air Retina 13-inch 2019
Top Case w/ Keyboard
661-09738, 661-09737, 661-09736

Top Case w/ Keyboard 661-09738, 661-09737, 661-09736 for MacBook Air Retina 13-inch 2019
Trackpad

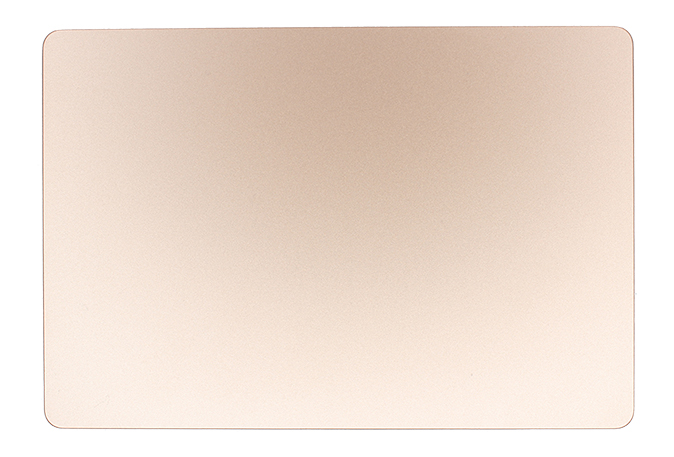

661-11906, 661-11907, 661-11908

Trackpad 661-11906, 661-11907, 661-11908 for MacBook Air Retina 13-inch 2019
Display Assembly
661-09735, 661-09734, 661-09733

Display Assembly 661-09735, 661-09734, 661-09733 for MacBook Air Retina 13-inch 2019

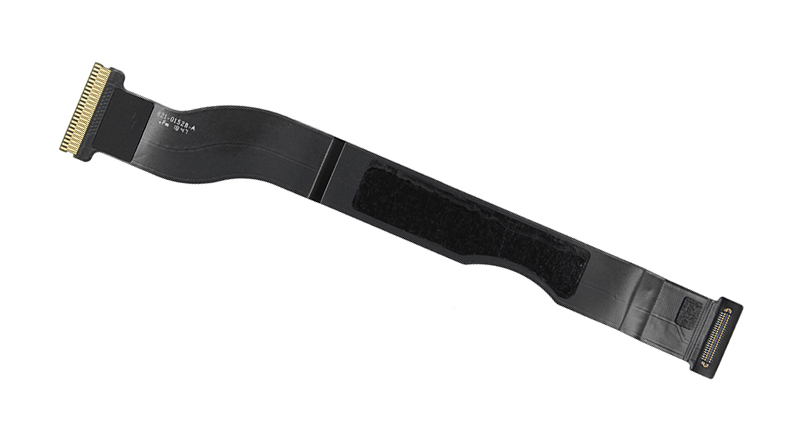

Audio Board Flex Cable 923-02812 for MacBook Air Retina 13-inch 2019
Audio Board Flex Cable
923-02812

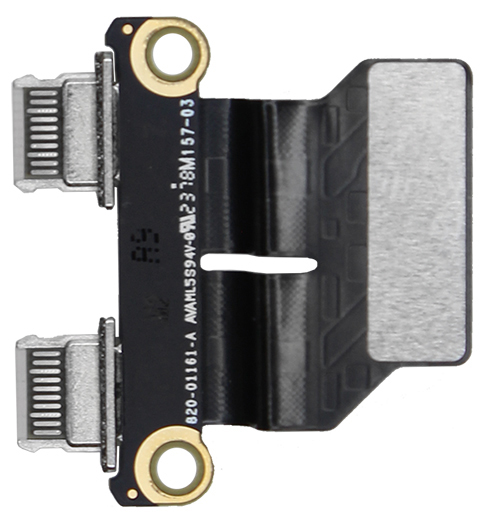

I/O Board 923-02813 for MacBook Air Retina 13-inch 2019
I/O Board
923-02813

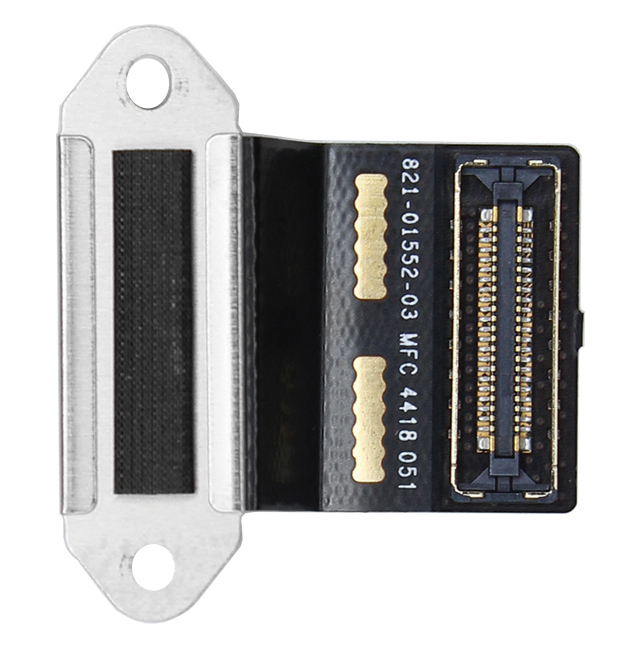

DisplayPort (eDP) Flex Cable 923-02440 for MacBook Air Retina 13-inch 2019
DisplayPort (eDP) Flex Cable
923-02440

Cowling, I/O Board (USB-C) Flex Cable 923-02873 for MacBook Air Retina 13-inch 2019
Cowling, I/O Board (USB-C) Flex Cable
923-02873

Cowling, Logic Board to Input Device (IPD) Flex cable 923-02876 for MacBook Air Retina 13-inch 2019
Cowling, Logic Board to Input Device (IPD) Flex cable
923-02876

Cowling, Logic Board, Wireless Antenna 923-02874 for MacBook Air Retina 13-inch 2019
Cowling, Logic Board, Wireless Antenna
923-02874

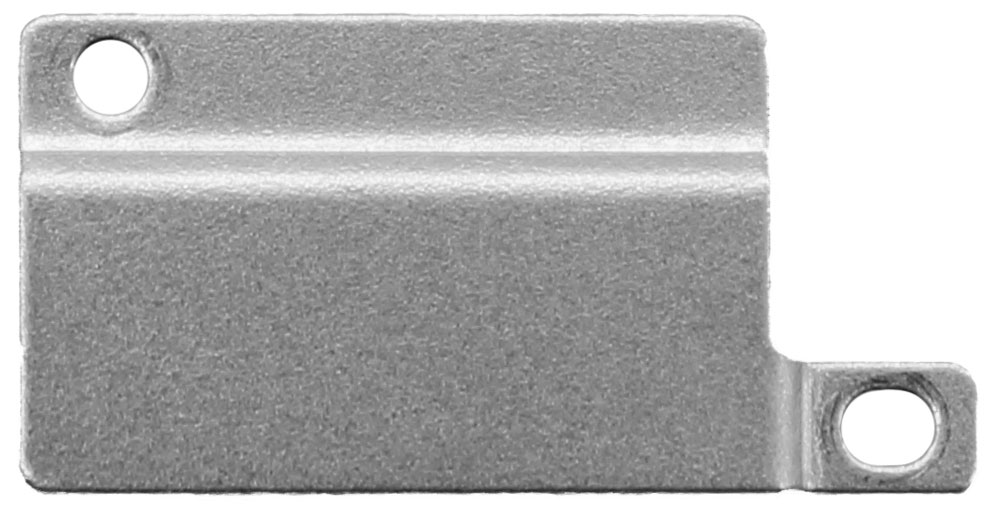

Cowling, eDP (Display) Flex Cable 923-02877 for MacBook Air Retina 13-inch 2019
Cowling, eDP (Display) Flex Cable
923-02877

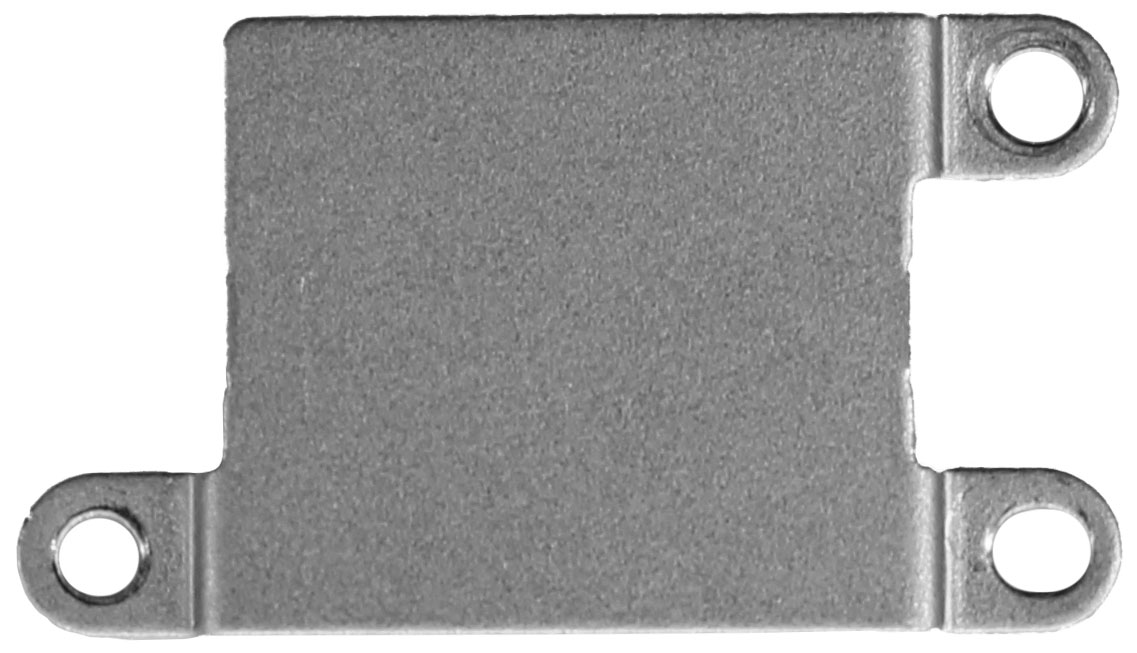

Cowling, Audio Board Flex Cable / Touch ID 923-02875 for MacBook Air Retina 13-inch 2019
Cowling, Audio Board Flex Cable / Touch ID
923-02875

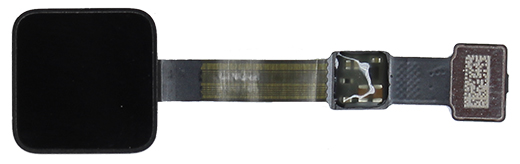

Touch ID Board 661-11677 for MacBook Air Retina 13-inch 2019
Touch ID Board
661-11677

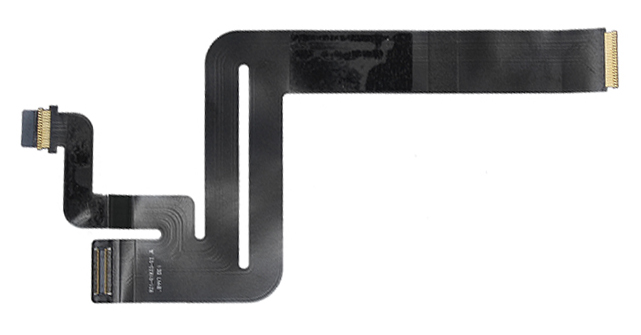

IPD Flex Cable, ANSI/ISO 923-02932 for MacBook Air Retina 13-inch 2019
IPD Flex Cable, ANSI/ISO
923-02932
