Exploded View MacBook Pro 13-inch 2019 2 TBT3

MacBook Pro 13-inch 2019 2 TBT3 - Exploded View

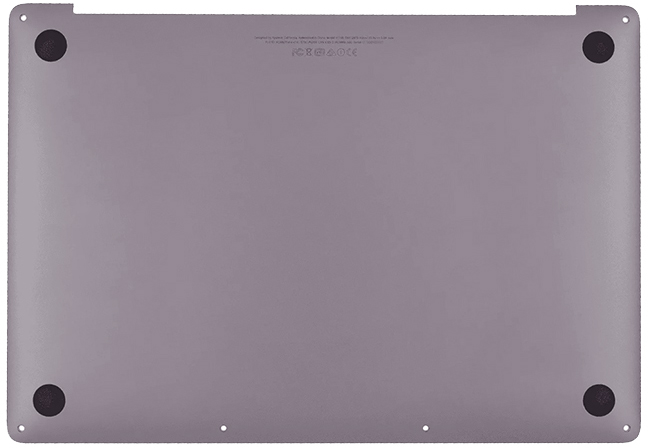

Bottom Case
923-03204, 923-03205

Bottom Case 923-03204, 923-03205 for MacBook Pro 13-inch 2019 2 TBT3

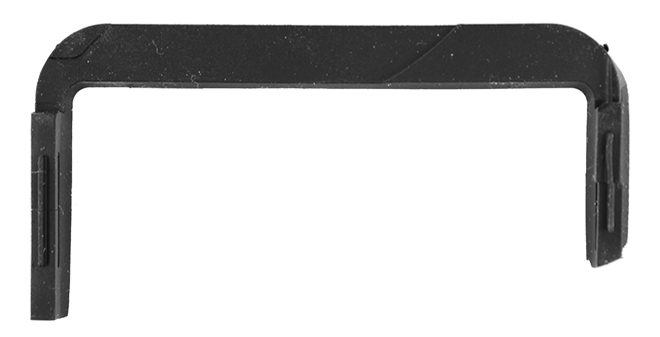

Thermal Duct
923-03217

Thermal Duct 923-03217 for MacBook Pro 13-inch 2019 2 TBT3

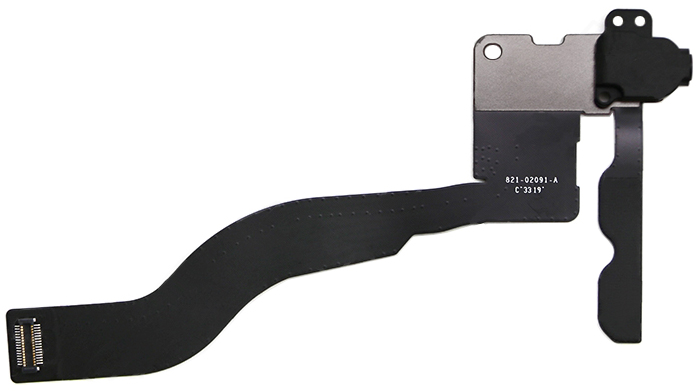

Audio Jack w/ Flex Cable
923-03206, 923-03207

Audio Jack w/ Flex Cable 923-03206, 923-03207 for MacBook Pro 13-inch 2019 2 TBT3

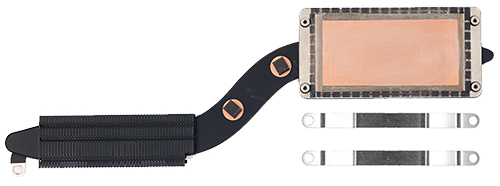

CPU Heat Sink Kit
076-00443

CPU Heat Sink Kit 076-00443 for MacBook Pro 13-inch 2019 2 TBT3

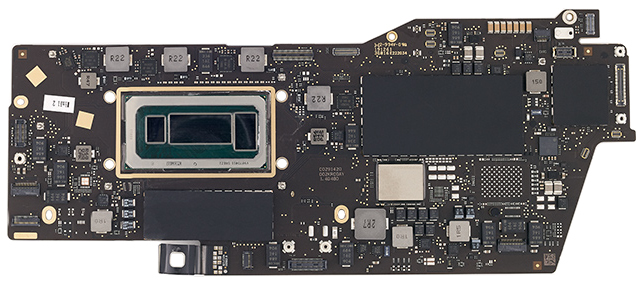

Logic Board
661-12566, 661-12567, 661-12568, 661-12569, 661-12570, 661-12571, 661-12572, 661-12573, 661-12574, 661-12575, 661-12576, 661-12577, 661-12578, 661-12579, 661-12580, 661-12581, 661-12582, 661-12583, 661-12584, 661-12585

Logic Board 661-12566, 661-12567, 661-12568, 661-12569, 661-12570, 661-12571, 661-12572, 661-12573, 661-12574, 661-12575, 661-12576, 661-12577, 661-12578, 661-12579, 661-12580, 661-12581, 661-12582, 661-12583, 661-12584, 661-12585 for MacBook Pro 13-inch 2019 2 TBT3
Vent Antenna Module
923-03211

Vent Antenna Module 923-03211 for MacBook Pro 13-inch 2019 2 TBT3
Clutch Cover, Left
923-01446

Clutch Cover, Left 923-01446 for MacBook Pro 13-inch 2019 2 TBT3

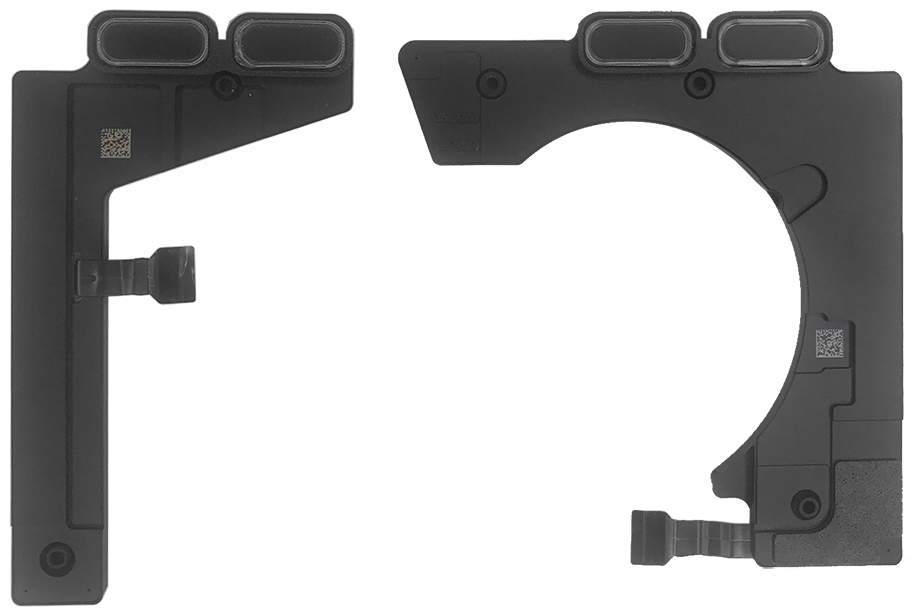

Speaker, Pair
923-03312

Speaker, Pair 923-03312 for MacBook Pro 13-inch 2019 2 TBT3

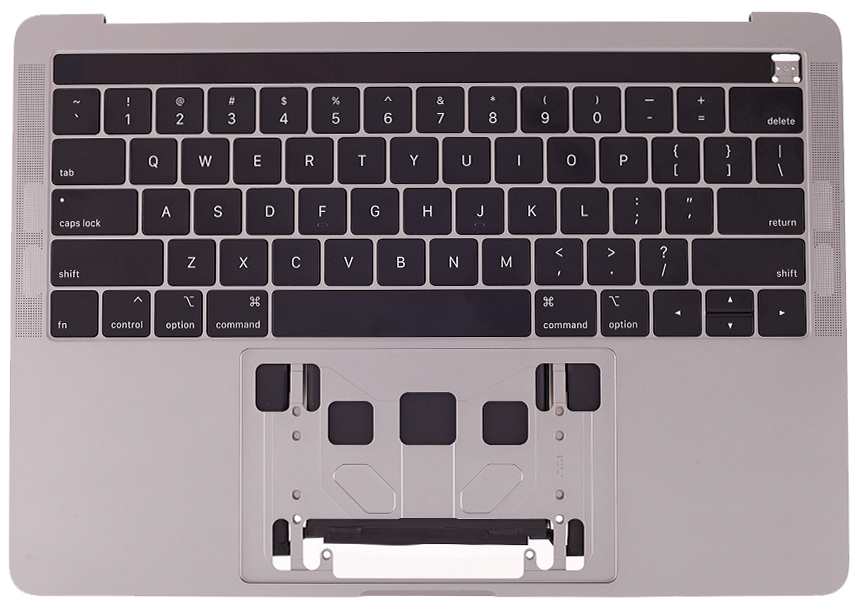

Top Case with Battery, ANSI
661-12993, 661-12994

Top Case with Battery, ANSI 661-12993, 661-12994 for MacBook Pro 13-inch 2019 2 TBT3

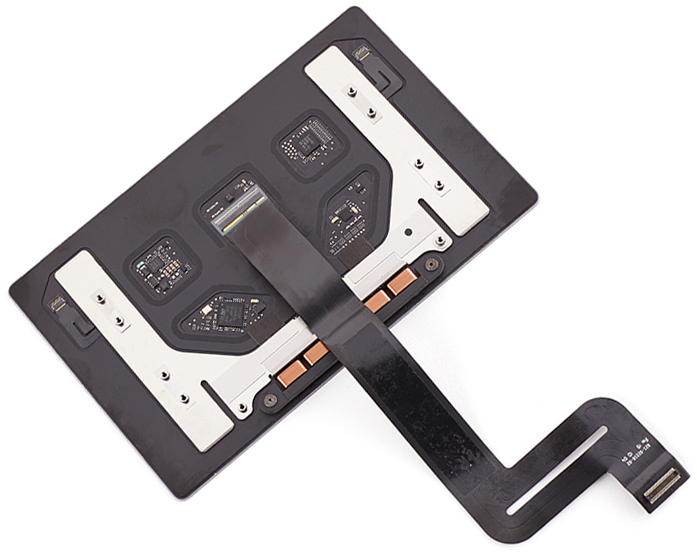

Trackpad w/ Keyboard Flex Cable
923-03560

Trackpad w/ Keyboard Flex Cable 923-03560 for MacBook Pro 13-inch 2019 2 TBT3
Display Assembly
661-10357, 661-10037

Display Assembly 661-10357, 661-10037 for MacBook Pro 13-inch 2019 2 TBT3

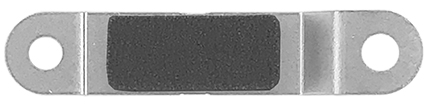

Cowling, Audio Board Flex Cable 923-03212 for MacBook Pro 13-inch 2019 2 TBT3
Cowling, Audio Board Flex Cable
923-03212

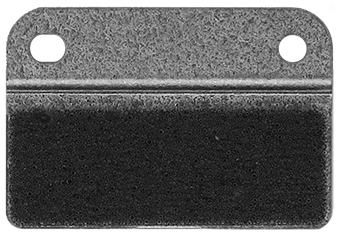

Cowling, Trackpad Flex Cable 923-03215, 923-01168 for MacBook Pro 13-inch 2019 2 TBT3
Cowling, Trackpad Flex Cable
923-03215, 923-01168

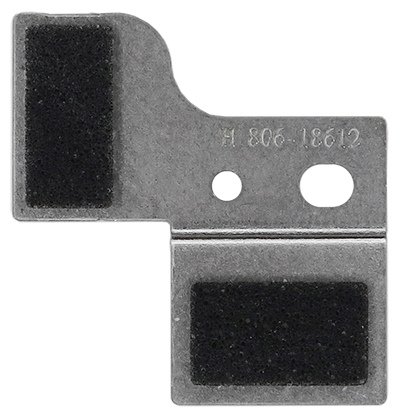

Cowling, Touch Bar Flex Cable 923-03213 for MacBook Pro 13-inch 2019 2 TBT3
Cowling, Touch Bar Flex Cable
923-03213

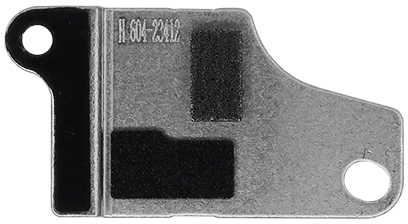

Cowling, Touch ID 923-03214 for MacBook Pro 13-inch 2019 2 TBT3
Cowling, Touch ID
923-03214

Cowling, I/O Board Flex Cable 923-02521 for MacBook Pro 13-inch 2019 2 TBT3
Cowling, I/O Board Flex Cable
923-02521

I/O Board (USB-C) (Right or Left) 923-02497, 923-01445 for MacBook Pro 13-inch 2019 2 TBT3
I/O Board (USB-C) (Right or Left)
923-02497, 923-01445

BMU (Battery Daughter Board) Flex Cable 923-01448 for MacBook Pro 13-inch 2019 2 TBT3
BMU (Battery Daughter Board) Flex Cable
923-01448

Cowling, Display / LVDS / eDP Upper 923-01310 for MacBook Pro 13-inch 2019 2 TBT3
Cowling, Display / LVDS / eDP Upper
923-01310

BMU Battery (Daughter Board) Mylar Cover 923-01451 for MacBook Pro 13-inch 2019 2 TBT3
BMU Battery (Daughter Board) Mylar Cover
923-01451

Cowling, Display / LVDS / eDP (Lower) 923-02519 for MacBook Pro 13-inch 2019 2 TBT3
Cowling, Display / LVDS / eDP (Lower)
923-02519

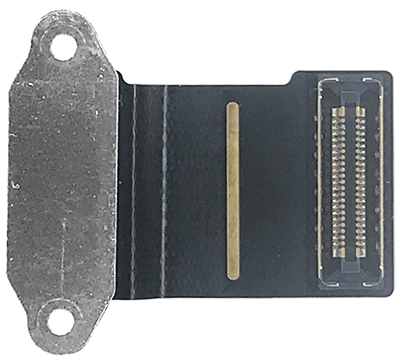

Display LVDS eDP Flex Cable 923-03524 for MacBook Pro 13-inch 2019 2 TBT3
Display LVDS eDP Flex Cable
923-03524

Touch ID Button Flexure 923-01740 for MacBook Pro 13-inch 2019 2 TBT3
Touch ID Button Flexure
923-01740

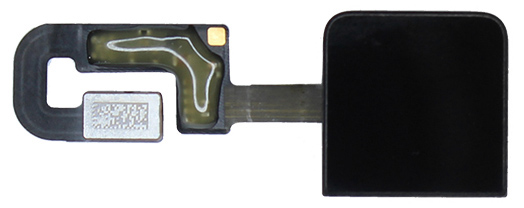

Touch ID / Button 661-13469 for MacBook Pro 13-inch 2019 2 TBT3
Touch ID / Button
661-13469
