Exploded View MacBook Pro 13-inch 2019 4 TBT3

MacBook Pro 13-inch 2019 4 TBT3 - Exploded View



Bottom Case
923-02514, 923-02515

Bottom Case 923-02514, 923-02515 for MacBook Pro 13-inch 2019 4 TBT3
Fan Rubber Ducts (Left and Right)
923-01394

Fan Rubber Ducts (Left and Right) 923-01394 for MacBook Pro 13-inch 2019 4 TBT3
Audio Jack / Board
923-02516, 923-02517

Audio Jack / Board 923-02516, 923-02517 for MacBook Pro 13-inch 2019 4 TBT3
Heatsink Flexures (Pair)
923-02603

Heatsink Flexures (Pair) 923-02603 for MacBook Pro 13-inch 2019 4 TBT3
CPU Heatsink
076-00402

CPU Heatsink 076-00402 for MacBook Pro 13-inch 2019 4 TBT3
Vent / Antenna Module
923-01389

Vent / Antenna Module 923-01389 for MacBook Pro 13-inch 2019 4 TBT3
Fan, Left
923-02580

Fan, Left 923-02580 for MacBook Pro 13-inch 2019 4 TBT3
Fan, Right
923-02581

Fan, Right 923-02581 for MacBook Pro 13-inch 2019 4 TBT3
BMU Flex Cable
923-02762

BMU Flex Cable 923-02762 for MacBook Pro 13-inch 2019 4 TBT3
Keyboard Flex Cable, ANSI/ISO
923-02760

Keyboard Flex Cable, ANSI/ISO 923-02760 for MacBook Pro 13-inch 2019 4 TBT3
Touch ID Shim Button
923-01519

Touch ID Shim Button 923-01519 for MacBook Pro 13-inch 2019 4 TBT3

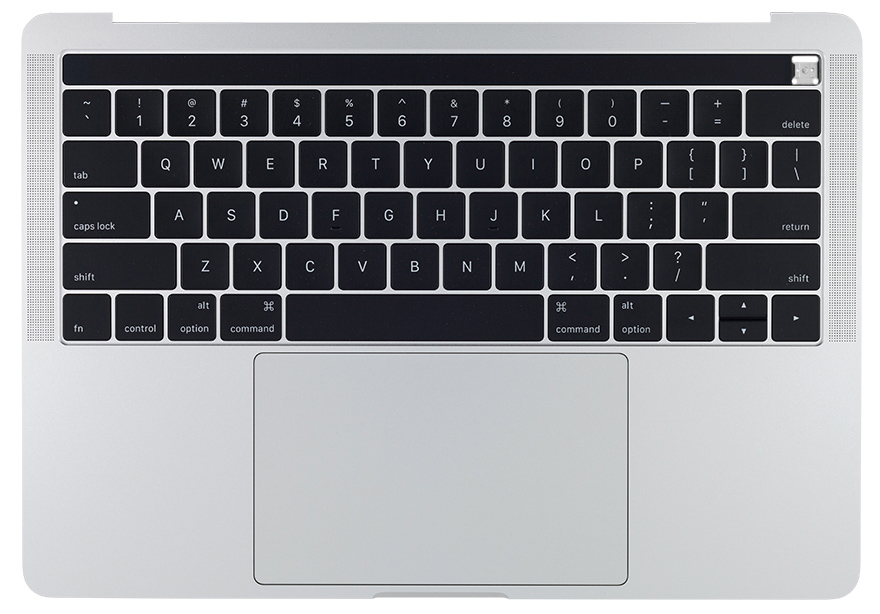

Top Case w/ Battery
661-10040, 661-10361

Top Case w/ Battery 661-10040, 661-10361 for MacBook Pro 13-inch 2019 4 TBT3

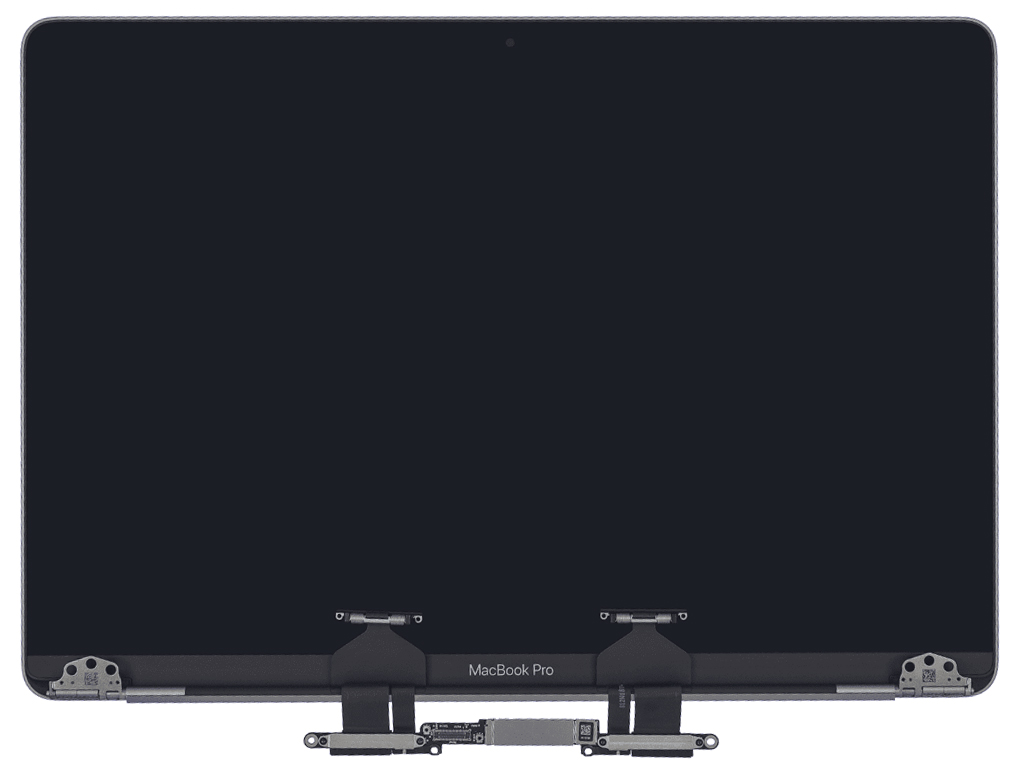

Display Assembly
661-10037, 661-10357

Display Assembly 661-10037, 661-10357 for MacBook Pro 13-inch 2019 4 TBT3
Cowling, Audio Board Flex 923-02522 for MacBook Pro 13-inch 2019 4 TBT3
Cowling, Audio Board Flex
923-02522

Keyboard / Trackpad Flex Cable Cowling 923-01623 for MacBook Pro 13-inch 2019 4 TBT3
Keyboard / Trackpad Flex Cable Cowling
923-01623

Touch Bar (Touch) Cowling 923-01602 for MacBook Pro 13-inch 2019 4 TBT3
Touch Bar (Touch) Cowling
923-01602

Touch Bar (Display) Cowling 923-01603 for MacBook Pro 13-inch 2019 4 TBT3
Touch Bar (Display) Cowling
923-01603

Clutch Cover Left 923-01305 for MacBook Pro 13-inch 2019 4 TBT3
Clutch Cover Left
923-01305

Clutch Cover Right 923-01304 for MacBook Pro 13-inch 2019 4 TBT3
Clutch Cover Right
923-01304

Cowling, I/O Board Flex Cable 923-02521 for MacBook Pro 13-inch 2019 4 TBT3
Cowling, I/O Board Flex Cable
923-02521

I/O Board (USB-C) (Right or Left) 923-02497 for MacBook Pro 13-inch 2019 4 TBT3
I/O Board (USB-C) (Right or Left)
923-02497

Cowling, Display / LVDS / eDP Upper 923-01310 for MacBook Pro 13-inch 2019 4 TBT3
Cowling, Display / LVDS / eDP Upper
923-01310

BMU Battery (Daughter Board) Mylar Cover 923-01451 for MacBook Pro 13-inch 2019 4 TBT3
BMU Battery (Daughter Board) Mylar Cover
923-01451

Cowling, Display / LVDS / eDP (Lower) 923-02519 for MacBook Pro 13-inch 2019 4 TBT3
Cowling, Display / LVDS / eDP (Lower)
923-02519

Display / LVDS / eDP (eDP) Cable 923-01393 for MacBook Pro 13-inch 2019 4 TBT3
Display / LVDS / eDP (eDP) Cable
923-01393

Touch ID Button Flexure 923-01740 for MacBook Pro 13-inch 2019 4 TBT3
Touch ID Button Flexure
923-01740

Touch ID Board 661-10376 for MacBook Pro 13-inch 2019 4 TBT3
Touch ID Board
661-10376
