Exploded View MacBook Pro 13-inch 2016 4 TBT3

MacBook Pro 13-inch 2016 4 TBT3 - Exploded View



Bottom Case
923-01381, 923-01382

Bottom Case 923-01381, 923-01382 for MacBook Pro 13-inch 2016 4 TBT3
Fan Rubber Ducts (Left and Right)
923-01394

Fan Rubber Ducts (Left and Right) 923-01394 for MacBook Pro 13-inch 2016 4 TBT3
CPU Heatsink
076-00293

CPU Heatsink 076-00293 for MacBook Pro 13-inch 2016 4 TBT3

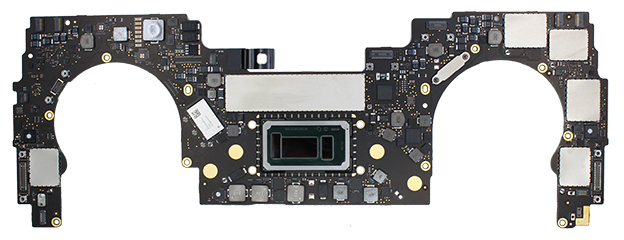

Logic Board
661-05251, 661-05254, 661-05257, 661-05260, 661-05263, 661-05266, 661-05269, 661-05272, 661-05275, 661-05278, 661-05281, 661-05284, 661-05287, 661-05290, 661-05293, 661-05296, 661-05299, 661-05302

Logic Board 661-05251, 661-05254, 661-05257, 661-05260, 661-05263, 661-05266, 661-05269, 661-05272, 661-05275, 661-05278, 661-05281, 661-05284, 661-05287, 661-05290, 661-05293, 661-05296, 661-05299, 661-05302 for MacBook Pro 13-inch 2016 4 TBT3
Vent / Antenna Module
923-01389

Vent / Antenna Module 923-01389 for MacBook Pro 13-inch 2016 4 TBT3
Fan, Left
923-01388

Fan, Left 923-01388 for MacBook Pro 13-inch 2016 4 TBT3
Fan, Right
923-01472

Fan, Right 923-01472 for MacBook Pro 13-inch 2016 4 TBT3
I/O Board (Right or Left)
923-01444

I/O Board (Right or Left) 923-01444 for MacBook Pro 13-inch 2016 4 TBT3
Touch ID Shim Button
923-01519

Touch ID Shim Button 923-01519 for MacBook Pro 13-inch 2016 4 TBT3
Top Case w/ Battery
661-07950, 661-07951

Top Case w/ Battery 661-07950, 661-07951 for MacBook Pro 13-inch 2016 4 TBT3
Display Assembly
661-05095, 661-05096

Display Assembly 661-05095, 661-05096 for MacBook Pro 13-inch 2016 4 TBT3
Audio Board / Jack Cowling 923-01600 for MacBook Pro 13-inch 2016 4 TBT3
Audio Board / Jack Cowling
923-01600

Keyboard / Trackpad Flex Cable Cowling 923-01623 for MacBook Pro 13-inch 2016 4 TBT3
Keyboard / Trackpad Flex Cable Cowling
923-01623

Touch Bar (Touch) Cowling 923-01602 for MacBook Pro 13-inch 2016 4 TBT3
Touch Bar (Touch) Cowling
923-01602

Touch Bar (Display) Cowling 923-01603 for MacBook Pro 13-inch 2016 4 TBT3
Touch Bar (Display) Cowling
923-01603

Clutch Cover Left 923-01305 for MacBook Pro 13-inch 2016 4 TBT3
Clutch Cover Left
923-01305

Clutch Cover Right 923-01304 for MacBook Pro 13-inch 2016 4 TBT3
Clutch Cover Right
923-01304

I/O Board Rubber Gasket 923-01405 for MacBook Pro 13-inch 2016 4 TBT3
I/O Board Rubber Gasket
923-01405

Cowling, Display / LVDS / eDP Upper 923-01310 for MacBook Pro 13-inch 2016 4 TBT3
Cowling, Display / LVDS / eDP Upper
923-01310

BMU Battery (Daughter Board) Mylar Cover 923-01451 for MacBook Pro 13-inch 2016 4 TBT3
BMU Battery (Daughter Board) Mylar Cover
923-01451

Display / LVDS / eDP Lower Cowling 923-01601 for MacBook Pro 13-inch 2016 4 TBT3
Display / LVDS / eDP Lower Cowling
923-01601

Display / LVDS / eDP (eDP) Cable 923-01393 for MacBook Pro 13-inch 2016 4 TBT3
Display / LVDS / eDP (eDP) Cable
923-01393

Keyboard Flex Cable 923-01453 for MacBook Pro 13-inch 2016 4 TBT3
Keyboard Flex Cable
923-01453

Touch ID Button Flexure 923-01740 for MacBook Pro 13-inch 2016 4 TBT3
Touch ID Button Flexure
923-01740
