Exploded View MacBook Pro Retina 15-inch Mid 2015

MacBook Pro Retina 15-inch Mid 2015 - Exploded View



Bottom Case
923-0671, 923-0670

Bottom Case 923-0671, 923-0670 for MacBook Pro Retina 15-inch Mid 2015
Speaker Set (Left and Right)
076-1401

Speaker Set (Left and Right) 076-1401 for MacBook Pro Retina 15-inch Mid 2015
Heatsink (Integrated Graphics)
076-1452, 076-1453

Heatsink (Integrated Graphics) 076-1452, 076-1453 for MacBook Pro Retina 15-inch Mid 2015
Wireless Card
661-02363

Wireless Card 661-02363 for MacBook Pro Retina 15-inch Mid 2015

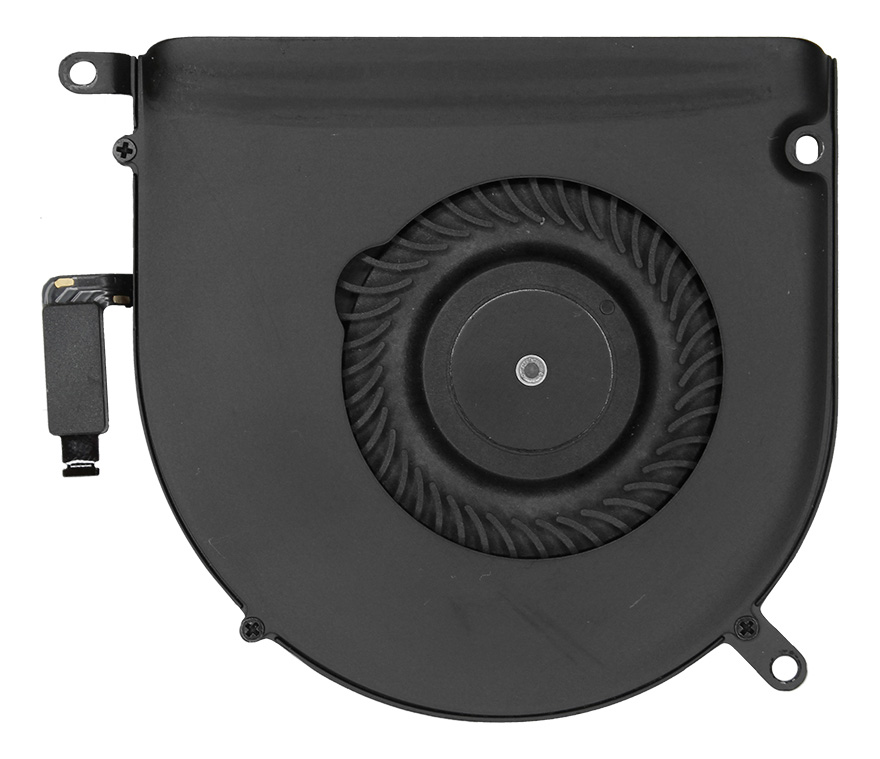

CPU Cooling Fan, Left
923-00537

CPU Cooling Fan, Left 923-00537 for MacBook Pro Retina 15-inch Mid 2015

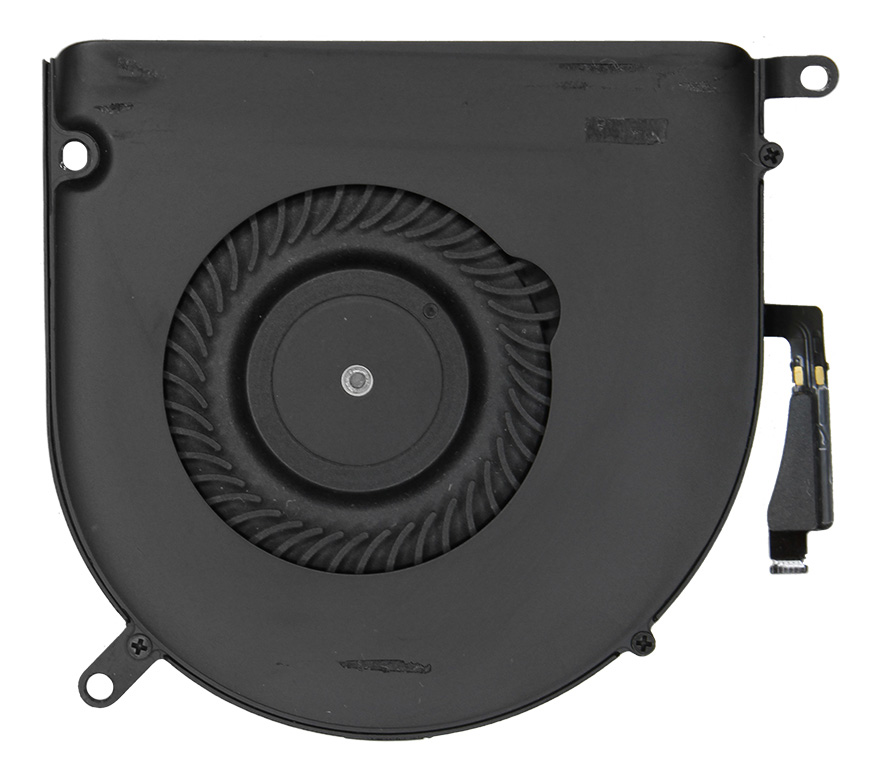

CPU Cooling Fan, Right
923-00536

CPU Cooling Fan, Right 923-00536 for MacBook Pro Retina 15-inch Mid 2015

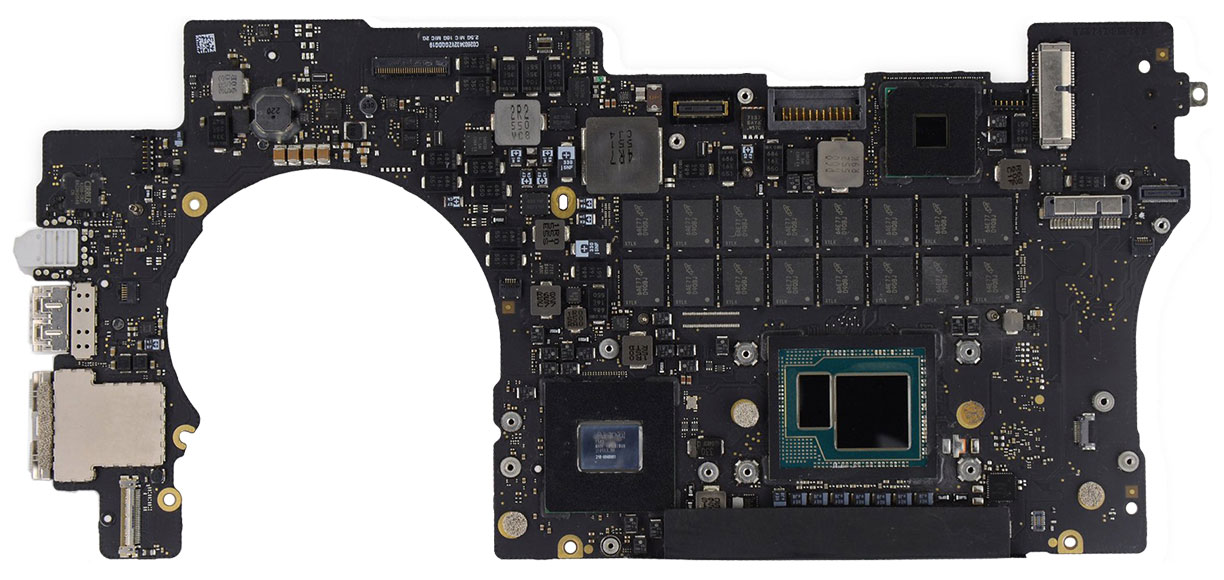

Logic Board
661-02524, 661-02525, 661-02526, 661-02527, 661-02528

Logic Board 661-02524, 661-02525, 661-02526, 661-02527, 661-02528 for MacBook Pro Retina 15-inch Mid 2015
I/O Board Cable Guide
923-0674

I/O Board Cable Guide 923-0674 for MacBook Pro Retina 15-inch Mid 2015

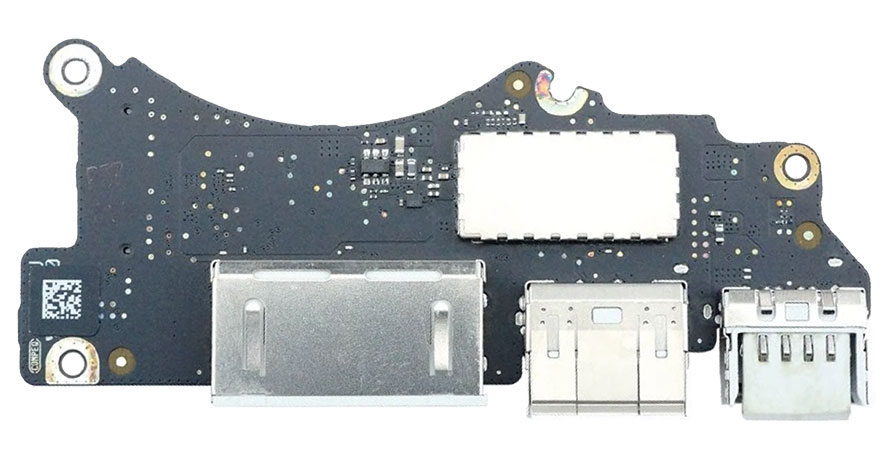

I/O Board
661-02535

I/O Board 661-02535 for MacBook Pro Retina 15-inch Mid 2015

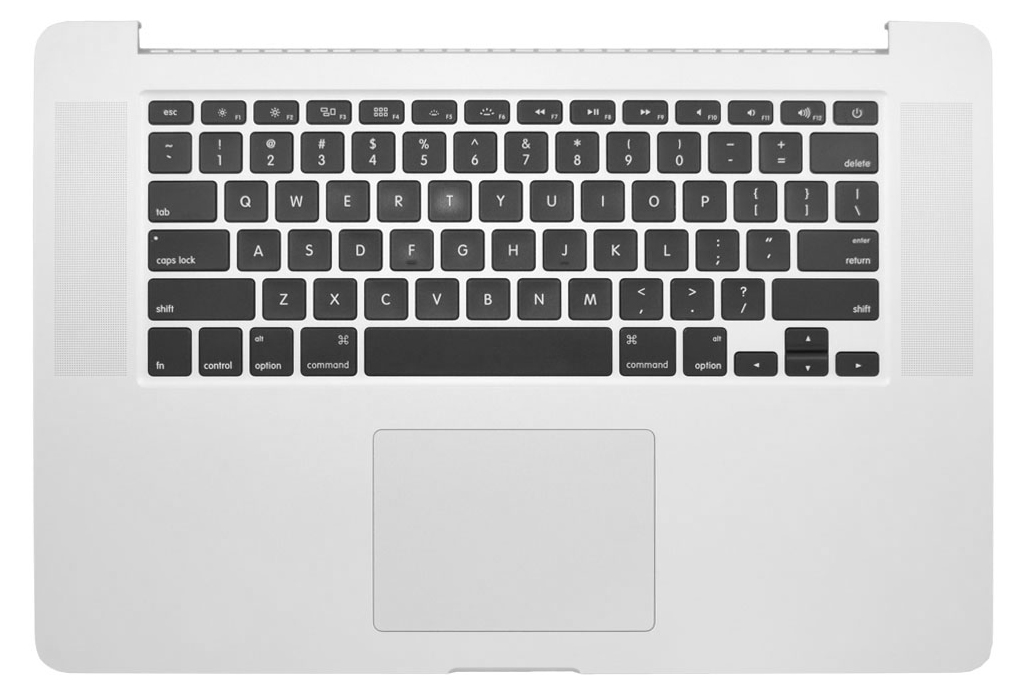

Top Case w/ Keyboard w/ Battery
661-02536

Top Case w/ Keyboard w/ Battery 661-02536 for MacBook Pro Retina 15-inch Mid 2015

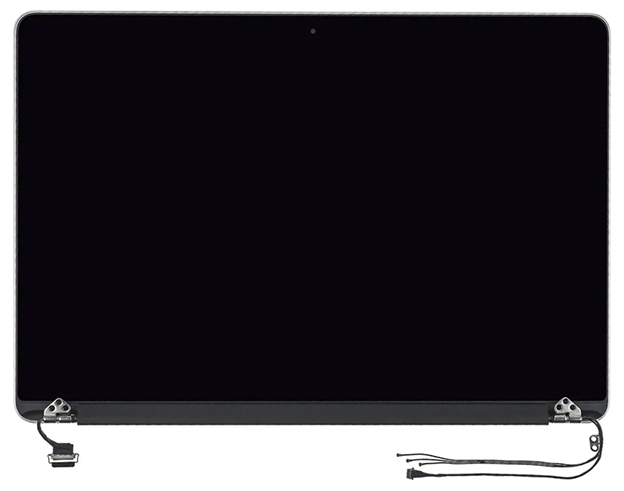

Display Assembly
661-02532

Display Assembly 661-02532 for MacBook Pro Retina 15-inch Mid 2015
Solid State Drive (SSD) PCIe 661-7456, 661-03525, 661-7459, 661-7462, 661-7540 for MacBook Pro Retina 15-inch Mid 2015
Solid State Drive (SSD) PCIe
661-7456, 661-03525, 661-7459, 661-7462, 661-7540

Fan Duct, Left 923-0673 for MacBook Pro Retina 15-inch Mid 2015
Fan Duct, Left
923-0673

Fan Duct, Right 923-0672 for MacBook Pro Retina 15-inch Mid 2015
Fan Duct, Right
923-0672

CPU / Heatsink Flexure / Spring (Discrete GPU) 923-00007 for MacBook Pro Retina 15-inch Mid 2015
CPU / Heatsink Flexure / Spring (Discrete GPU)
923-00007

I/O Board Coax Cable 923-0666 for MacBook Pro Retina 15-inch Mid 2015
I/O Board Coax Cable
923-0666

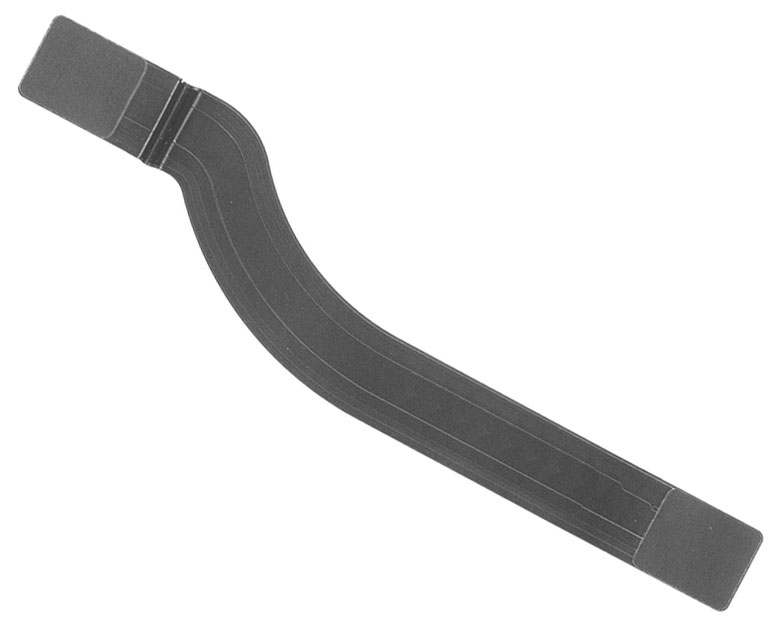

I/O Board Flex Cable w/ Foam 076-00085 for MacBook Pro Retina 15-inch Mid 2015
I/O Board Flex Cable w/ Foam
076-00085

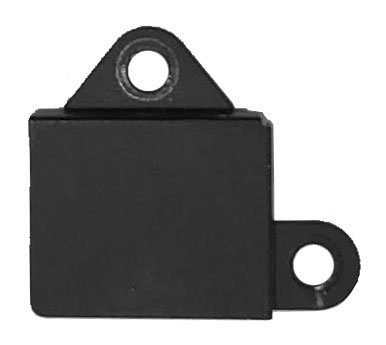

I/O Flex Cable Bracket 923-00539 for MacBook Pro Retina 15-inch Mid 2015
I/O Flex Cable Bracket
923-00539

MagSafe 2 Board 923-0667 for MacBook Pro Retina 15-inch Mid 2015
MagSafe 2 Board
923-0667

Clutch Screw Cover, Left 923-0109 for MacBook Pro Retina 15-inch Mid 2015
Clutch Screw Cover, Left
923-0109

Clutch Screw Cover, Right 923-0108 for MacBook Pro Retina 15-inch Mid 2015
Clutch Screw Cover, Right
923-0108

Display End Caps Kit (Left and Right) 076-1410 for MacBook Pro Retina 15-inch Mid 2015
Display End Caps Kit (Left and Right)
076-1410

Trackpad I/O Board Flex Cable Bracket 923-00542 for MacBook Pro Retina 15-inch Mid 2015
Trackpad I/O Board Flex Cable Bracket
923-00542

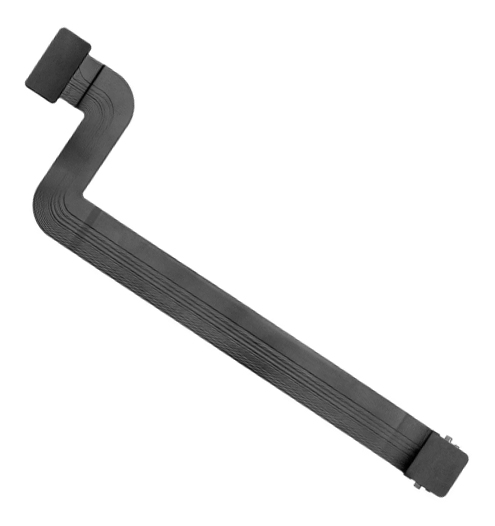

Trackpad Flex Cable 923-00541 for MacBook Pro Retina 15-inch Mid 2015
Trackpad Flex Cable
923-00541
