Exploded View MacBook Pro Retina 15-inch Mid 2012

MacBook Pro Retina 15-inch Mid 2012 - Exploded View

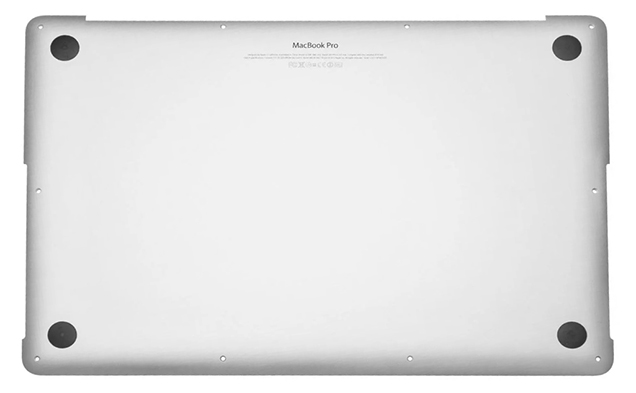

Bottom Case
923-0090

Bottom Case 923-0090 for MacBook Pro Retina 15-inch Mid 2012
Speaker Set (Left and Right)
076-1401

Speaker Set (Left and Right) 076-1401 for MacBook Pro Retina 15-inch Mid 2012

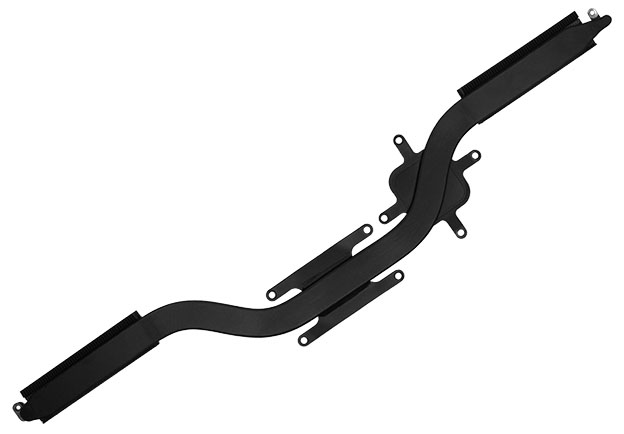

CPU Heatsink
076-1397

CPU Heatsink 076-1397 for MacBook Pro Retina 15-inch Mid 2012

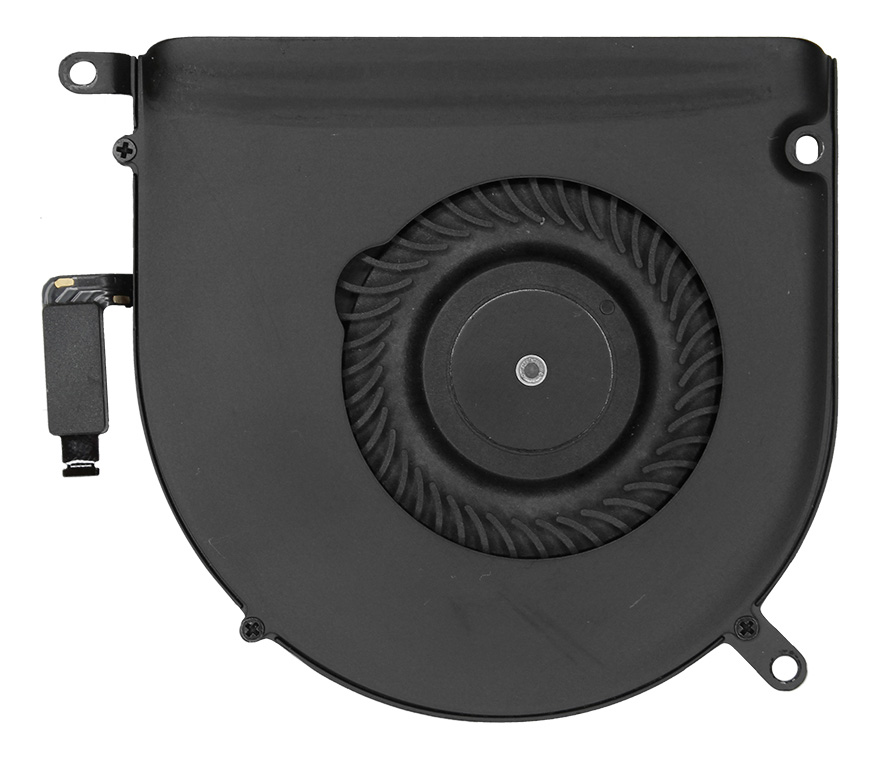

CPU Cooling Fan, Left
923-0092

CPU Cooling Fan, Left 923-0092 for MacBook Pro Retina 15-inch Mid 2012

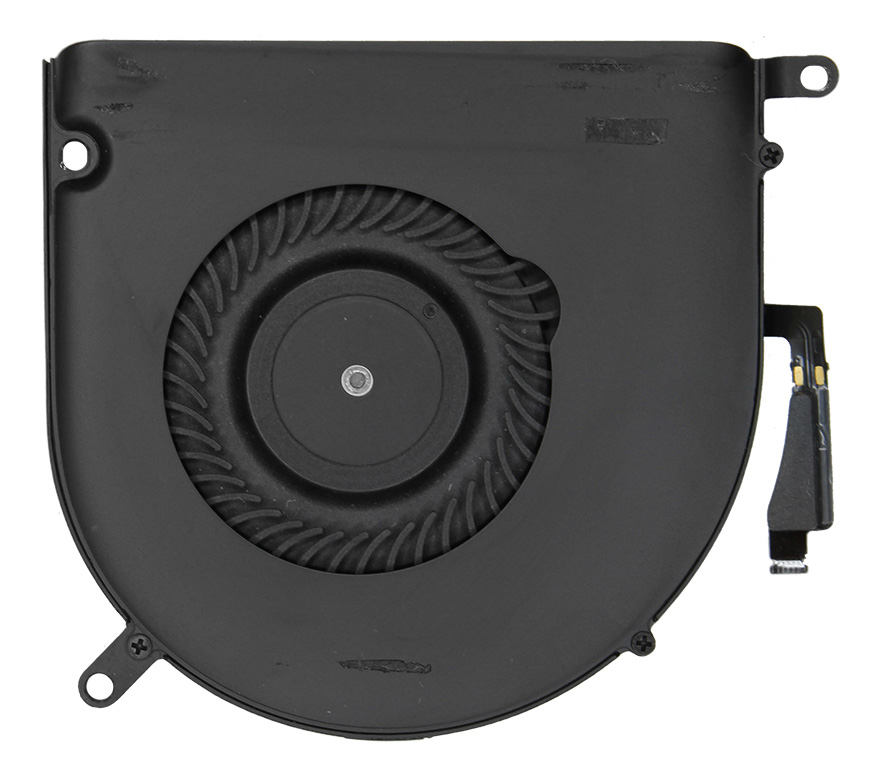

CPU Cooling Fan, Right
923-0091

CPU Cooling Fan, Right 923-0091 for MacBook Pro Retina 15-inch Mid 2012

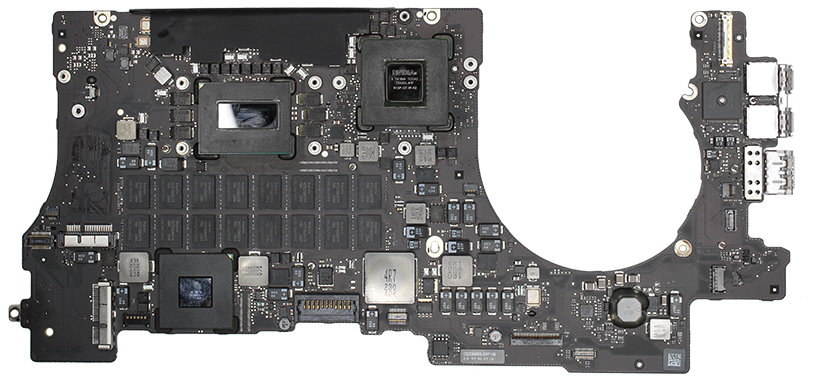

Logic Board
661-6481, 661-6482, 661-6484, 661-6485, 661-6538, 661-6539

Logic Board 661-6481, 661-6482, 661-6484, 661-6485, 661-6538, 661-6539 for MacBook Pro Retina 15-inch Mid 2012

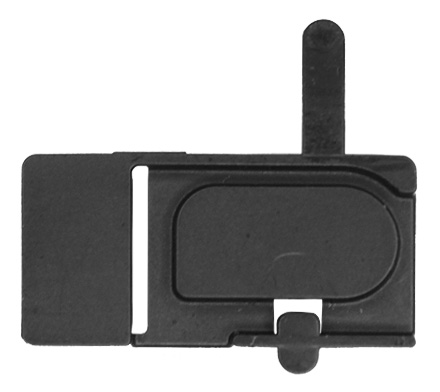

I/O Board Cable Guide
923-0110

I/O Board Cable Guide 923-0110 for MacBook Pro Retina 15-inch Mid 2012

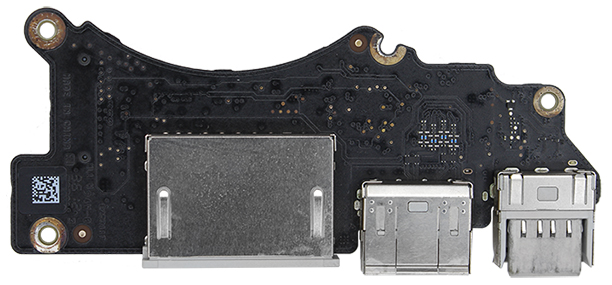

I/O Board
661-6535

I/O Board 661-6535 for MacBook Pro Retina 15-inch Mid 2012

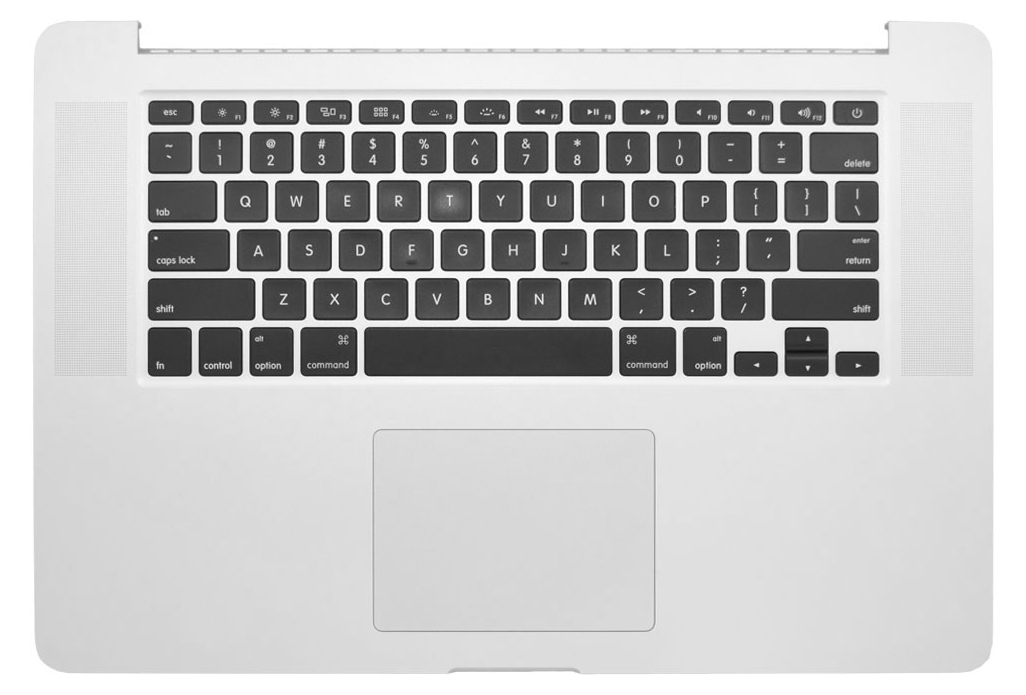

Top Case w/ Keyboard w/ Battery
661-6532

Top Case w/ Keyboard w/ Battery 661-6532 for MacBook Pro Retina 15-inch Mid 2012

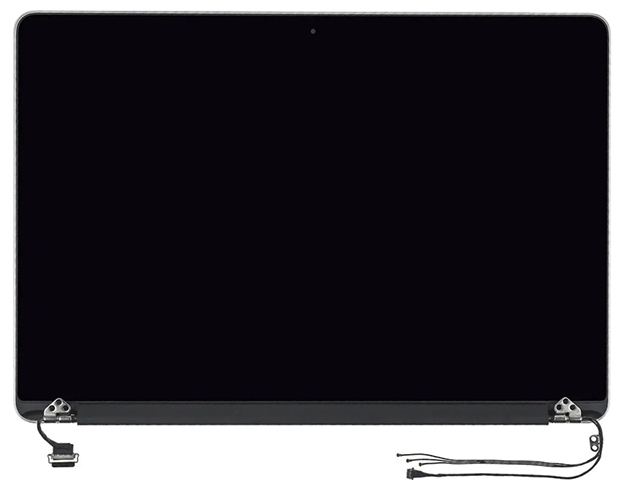

Display Assembly
661-6529

Display Assembly 661-6529 for MacBook Pro Retina 15-inch Mid 2012
Solid State Drive (SSD) PCIe 661-7009, 661-7010, 661-7011, 661-7285 for MacBook Pro Retina 15-inch Mid 2012
Solid State Drive (SSD) PCIe
661-7009, 661-7010, 661-7011, 661-7285

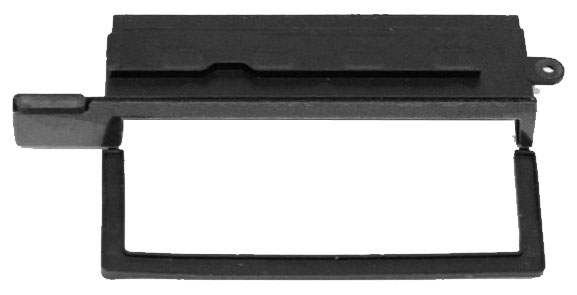

Fan Duct, Left 923-0102 for MacBook Pro Retina 15-inch Mid 2012
Fan Duct, Left
923-0102

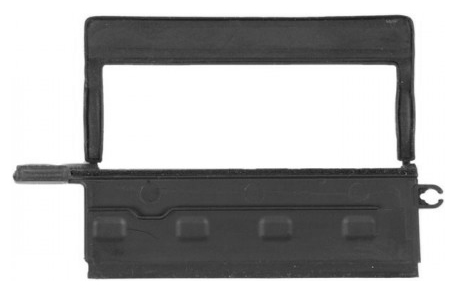

Fan Duct, Right 923-0101 for MacBook Pro Retina 15-inch Mid 2012
Fan Duct, Right
923-0101

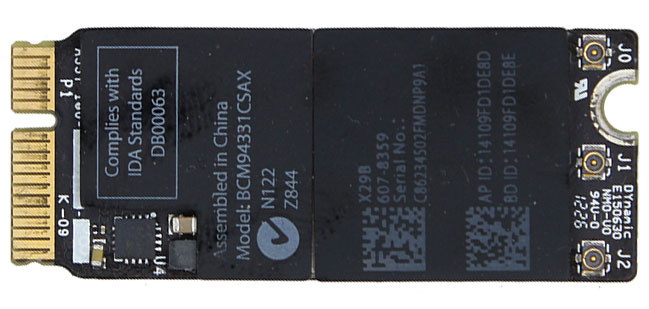

Wireless (Airport/Bluetooth) Card 661-6534 for MacBook Pro Retina 15-inch Mid 2012
Wireless (Airport/Bluetooth) Card
661-6534

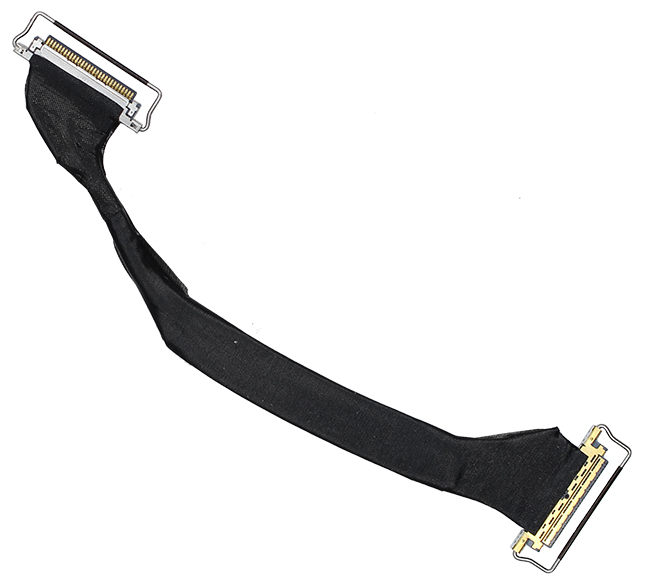

I/O Board Coax Cable 923-0099 for MacBook Pro Retina 15-inch Mid 2012
I/O Board Coax Cable
923-0099

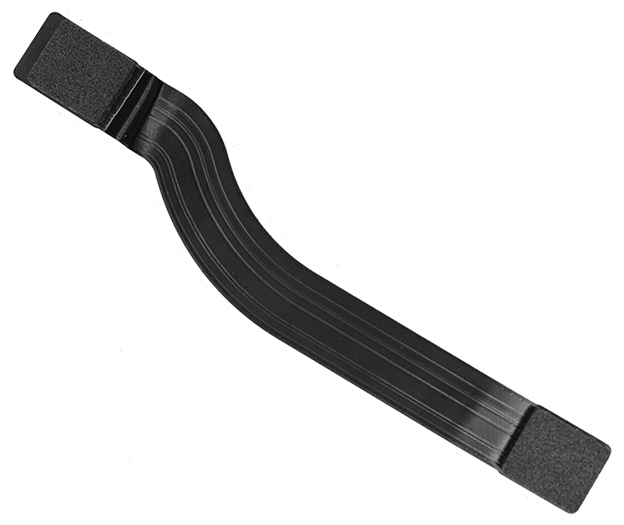

I/O Board Flex Cable 923-0095 for MacBook Pro Retina 15-inch Mid 2012
I/O Board Flex Cable
923-0095

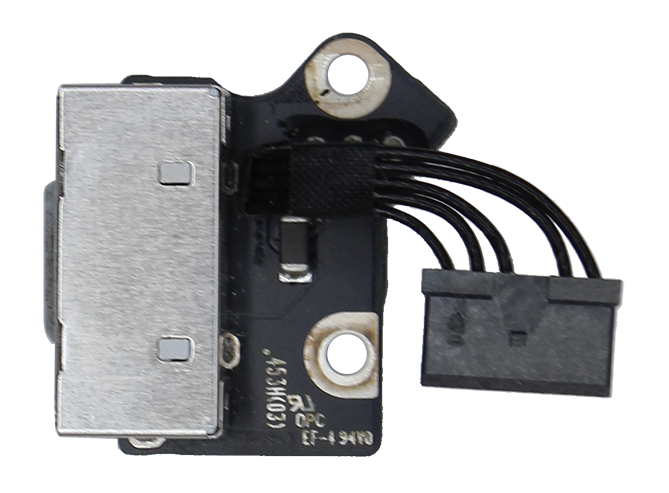

DC-In Magsafe 2 Board 923-0096 for MacBook Pro Retina 15-inch Mid 2012
DC-In Magsafe 2 Board
923-0096

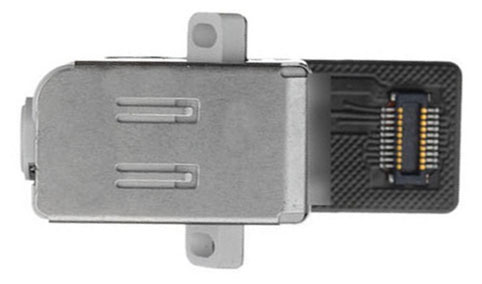

Audio Board / Jack 923-0097 for MacBook Pro Retina 15-inch Mid 2012
Audio Board / Jack
923-0097

Clutch Screw Cover, Left 923-0109 for MacBook Pro Retina 15-inch Mid 2012
Clutch Screw Cover, Left
923-0109

Clutch Screw Cover, Right 923-0108 for MacBook Pro Retina 15-inch Mid 2012
Clutch Screw Cover, Right
923-0108

Display End Caps Kit  (Left And Right) 076-1396 for MacBook Pro Retina 15-inch Mid 2012
Display End Caps Kit (Left And Right)
076-1396

Microphone 923-0100 for MacBook Pro Retina 15-inch Mid 2012
Microphone
923-0100
