Exploded View MacBook Air 13-inch Mid 2012

MacBook Air 13-inch Mid 2012 - Exploded View



Bottom Case / Cover
923-0129

Bottom Case / Cover 923-0129 for MacBook Air 13-inch Mid 2012
Li-Ion Battery
661-6055

Li-Ion Battery 661-6055 for MacBook Air 13-inch Mid 2012
Speaker Left
923-0463

Speaker Left 923-0463 for MacBook Air 13-inch Mid 2012
Speaker, Right
923-0127

Speaker, Right 923-0127 for MacBook Air 13-inch Mid 2012

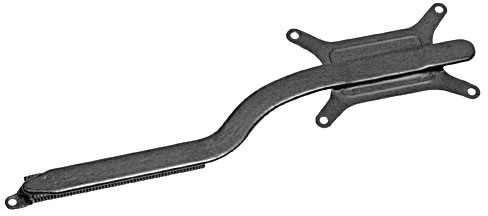

CPU Heatsink
076-1387

CPU Heatsink 076-1387 for MacBook Air 13-inch Mid 2012

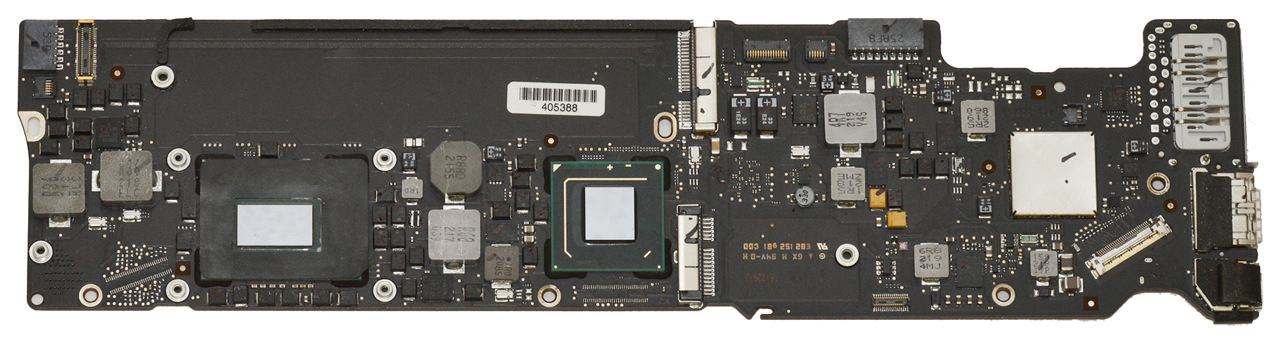

Logic Board
661-6631, 661-6632, 661-6633, 661-6634, 661-6680

Logic Board 661-6631, 661-6632, 661-6633, 661-6634, 661-6680 for MacBook Air 13-inch Mid 2012

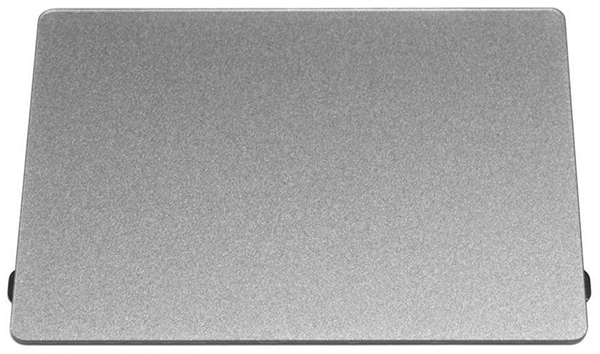

Trackpad
923-0124

Trackpad 923-0124 for MacBook Air 13-inch Mid 2012

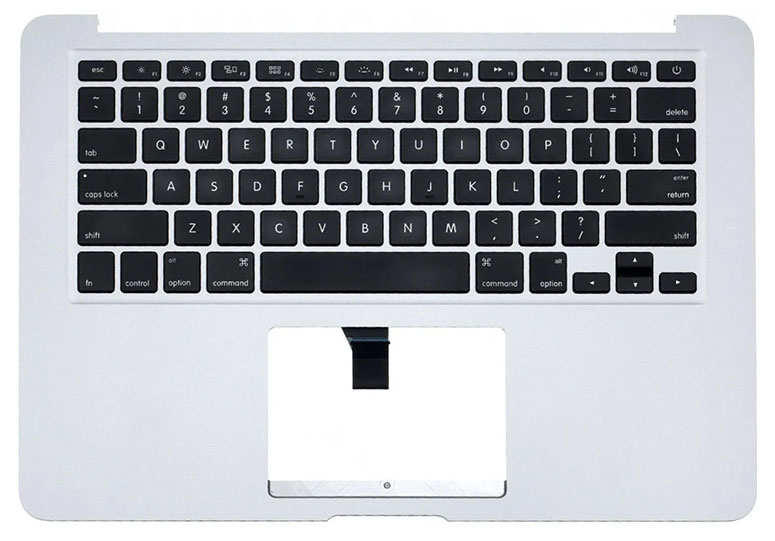

Top Case w/ Keyboard
661-6635

Top Case w/ Keyboard 661-6635 for MacBook Air 13-inch Mid 2012
Display Hinge Clutch Cover Barrel
076-1373

Display Hinge Clutch Cover Barrel 076-1373 for MacBook Air 13-inch Mid 2012

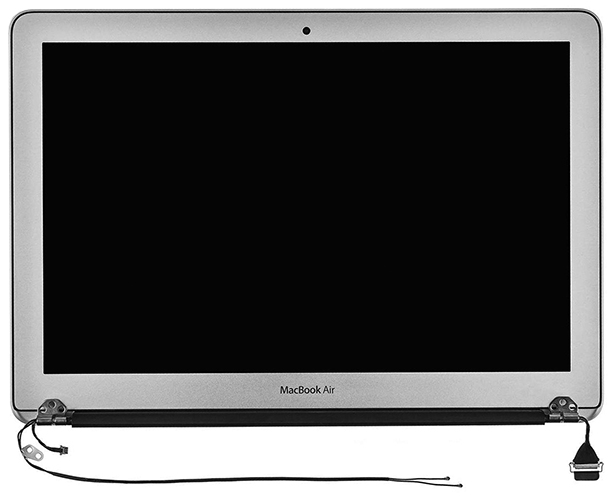

Display Assembly, Complete
661-6630

Display Assembly, Complete 661-6630 for MacBook Air 13-inch Mid 2012

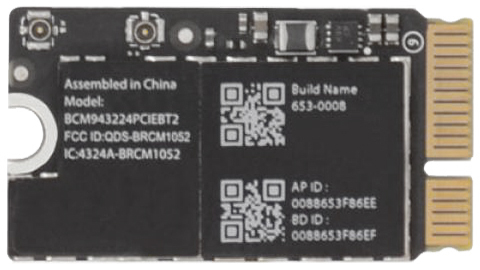

Wireless (Airport/Bluetooth) Card 661-6622 for MacBook Air 13-inch Mid 2012
Wireless (Airport/Bluetooth) Card
661-6622

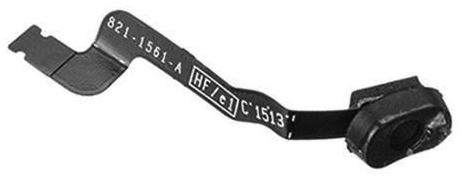

Microphone 076-1406 for MacBook Air 13-inch Mid 2012
Microphone
076-1406

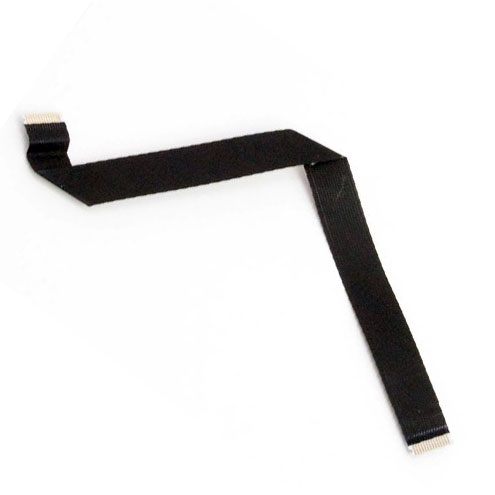

Trackpad (IPD) Flex Cable 922-9967 for MacBook Air 13-inch Mid 2012
Trackpad (IPD) Flex Cable
922-9967

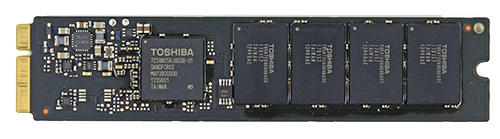

Solid State Drive (SSD) PCIe 661-6618, 661-6619, 661-6620, 661-6621 for MacBook Air 13-inch Mid 2012
Solid State Drive (SSD) PCIe
661-6618, 661-6619, 661-6620, 661-6621

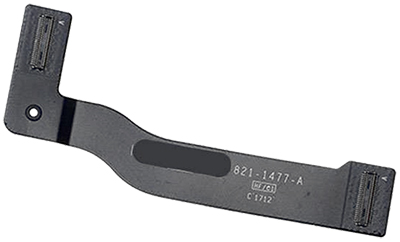

I/O Board Flex Cable 923-0128 for MacBook Air 13-inch Mid 2012
I/O Board Flex Cable
923-0128

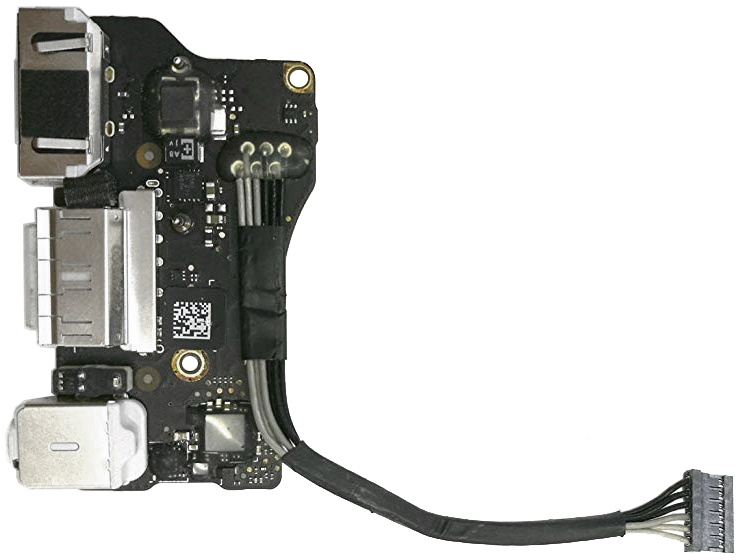

I/O Magsafe 2 Audio USB Board Assembly 923-0125 for MacBook Air 13-inch Mid 2012
I/O Magsafe 2 Audio USB Board Assembly
923-0125

CPU Cooling Fan 922-9643 for MacBook Air 13-inch Mid 2012
CPU Cooling Fan
922-9643

Thermal Module / Fan Gasket 922-9669 for MacBook Air 13-inch Mid 2012
Thermal Module / Fan Gasket
922-9669

Trackpad Flexure, Left 922-9648 for MacBook Air 13-inch Mid 2012
Trackpad Flexure, Left
922-9648

Trackpad Flexure, Right 922-9647 for MacBook Air 13-inch Mid 2012
Trackpad Flexure, Right
922-9647
