MacBook Retina 12-inch 2017 - Exploded View

Bottom Case w/ Battery

661-04855, 661-04856, 661-04858, 661-04876

Keyboard To Input Device (IPD) Cable

923-00408

Audio Board Flex Cable

923-00403

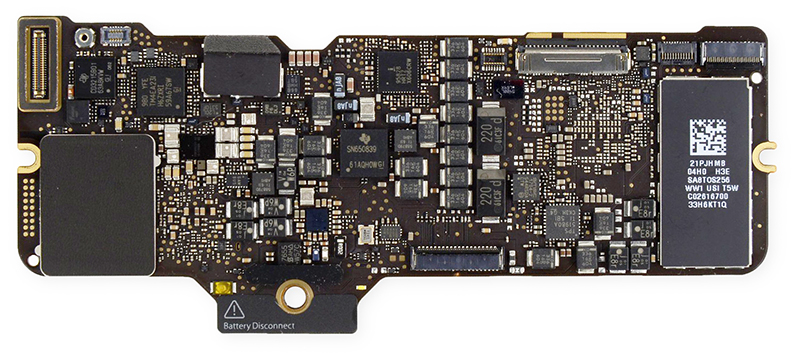

Logic Board

661-06770, 661-06772, 661-06774, 661-06775, 661-06777, 661-06778, 661-06780, 661-06781, 661-06783, 661-06784

Speaker / Antenna Modules (Left and Right)

923-00996

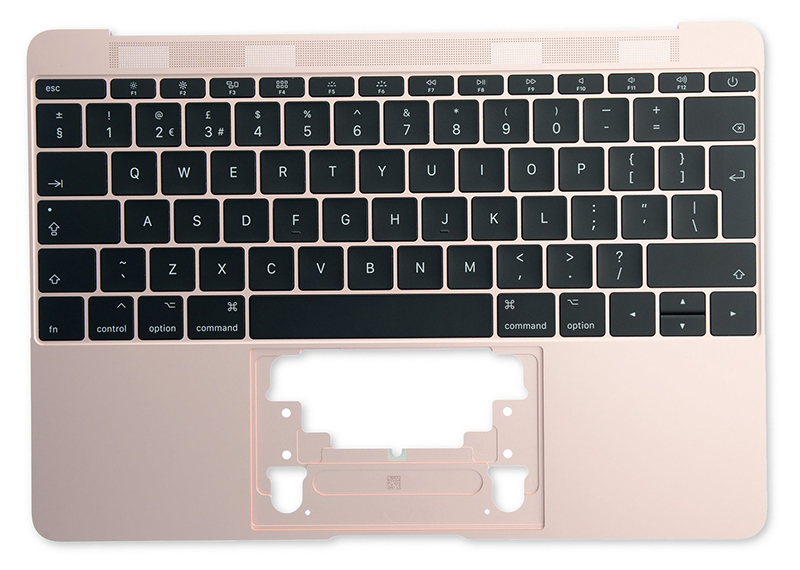

Top Case w/ Keyboard

661-04881, 661-04882, 661-04883, 661-04884

Display Assembly

661-02241, 661-02248, 661-02266, 661-04852

I/O Board And Flex Cable Assembly

923-00997

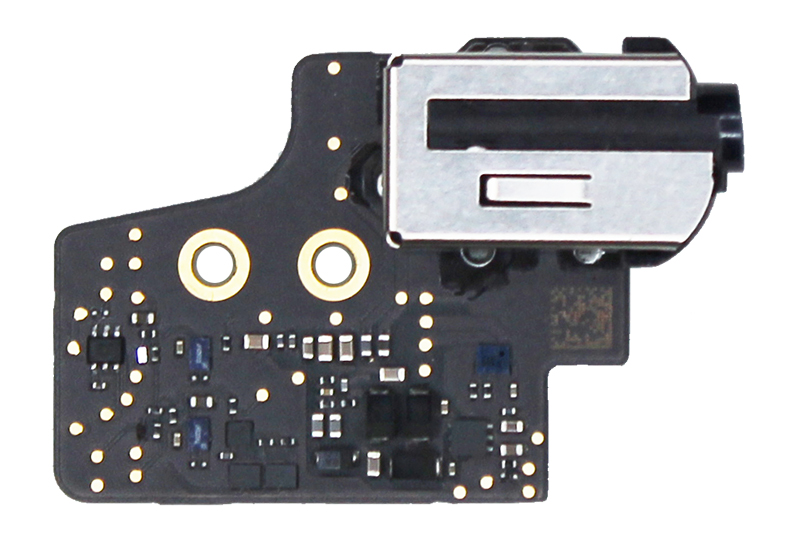

Audio Board

923-00413, 923-00440, 923-00441

Display (TCON) Flex Cable Cowling

923-01002

Display (TCON) Board Flex Cable

923-01004

Trackpad (IPD) To Logic Board Flex Cable

923-01005

Display Clutch Screws Covers (Left and Right)

923-01001
