Exploded View MacBook Retina 12-inch Early 2015

MacBook Retina 12-inch Early 2015 - Exploded View



Bottom Case w/ Battery
661-02245, 661-02267, 661-02278

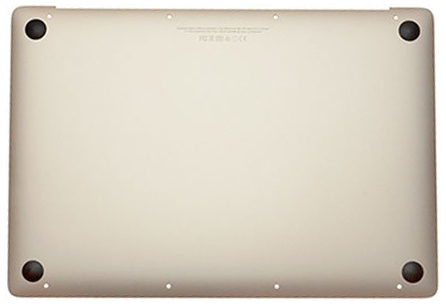

Bottom Case w/ Battery 661-02245, 661-02267, 661-02278 for MacBook Retina 12-inch Early 2015
Keyboard To Input Device (IPD) Cable
923-00408

Keyboard To Input Device (IPD) Cable 923-00408 for MacBook Retina 12-inch Early 2015
Audio Board Flex Cable
923-00403

Audio Board Flex Cable 923-00403 for MacBook Retina 12-inch Early 2015
Logic Board
661-02244, 661-02246, 661-02247, 661-02258

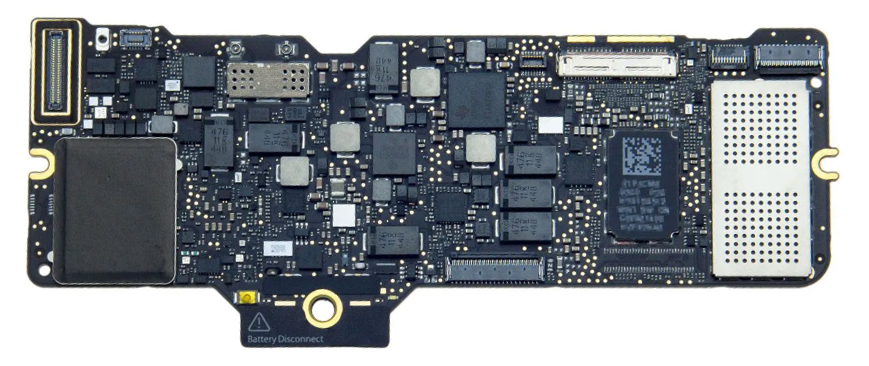

Logic Board 661-02244, 661-02246, 661-02247, 661-02258 for MacBook Retina 12-inch Early 2015
Speaker / Antenna Modules (Left and Right)
923-00410

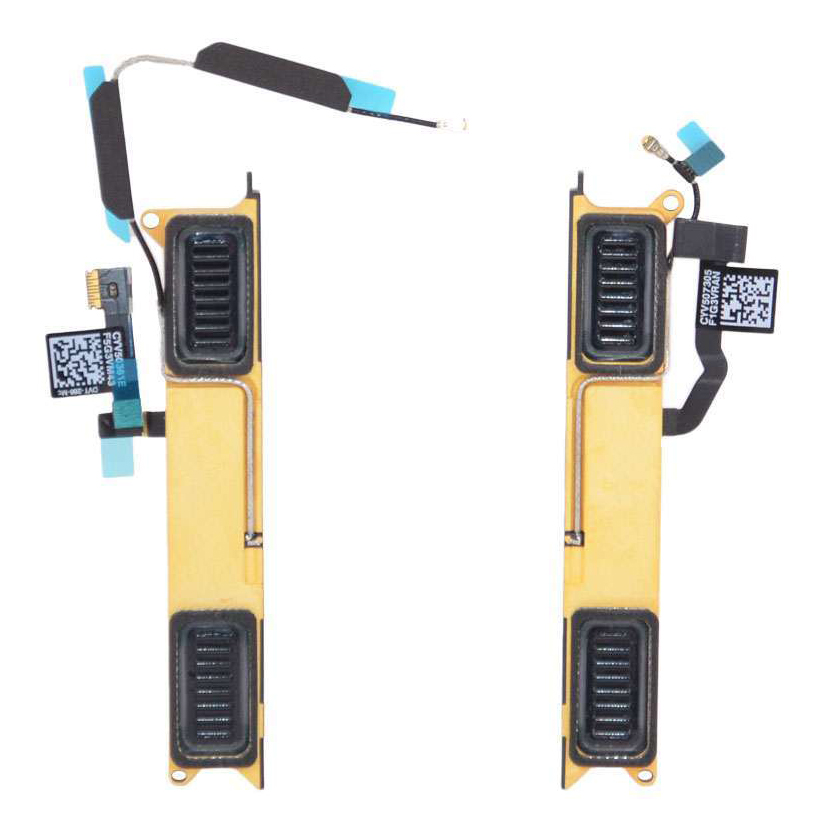

Speaker / Antenna Modules (Left and Right) 923-00410 for MacBook Retina 12-inch Early 2015
Top Case w/ Keyboard
661-02242, 661-02243, 661-02280

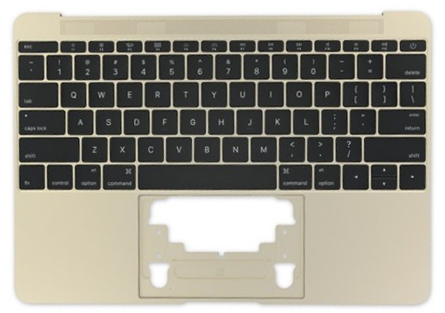

Top Case w/ Keyboard 661-02242, 661-02243, 661-02280 for MacBook Retina 12-inch Early 2015
Display Assembly
661-02241, 661-02248, 661-02266

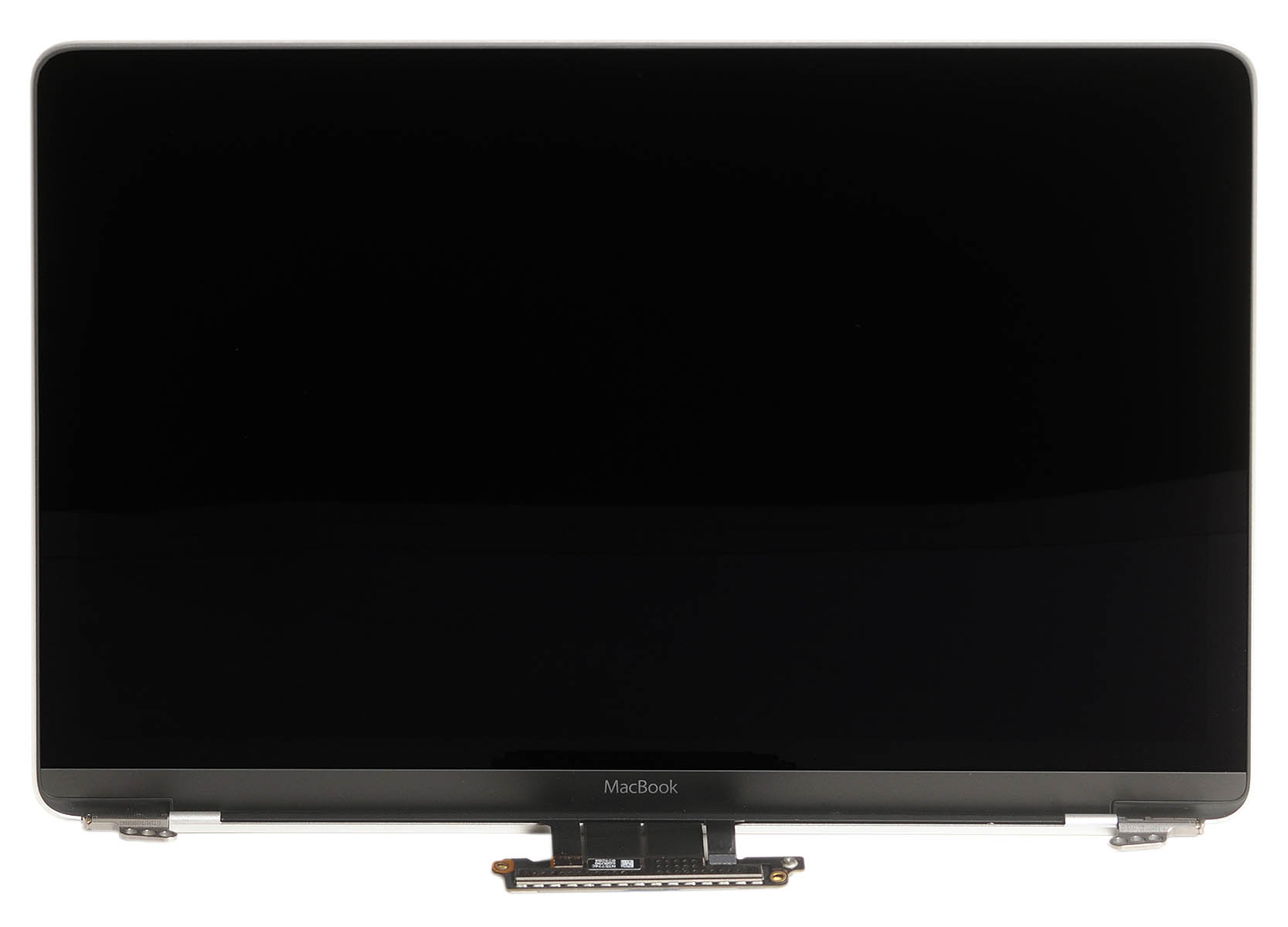

Display Assembly 661-02241, 661-02248, 661-02266 for MacBook Retina 12-inch Early 2015

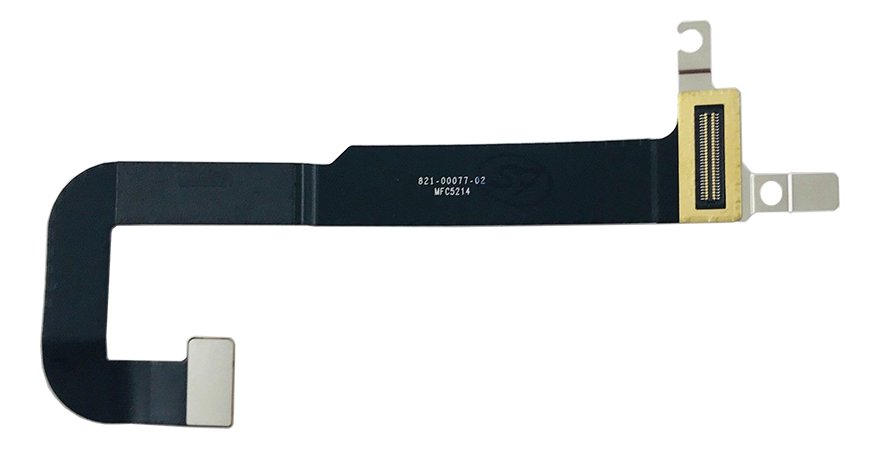

I/O Board Flex Cable 923-00461 for MacBook Retina 12-inch Early 2015
I/O Board Flex Cable
923-00461

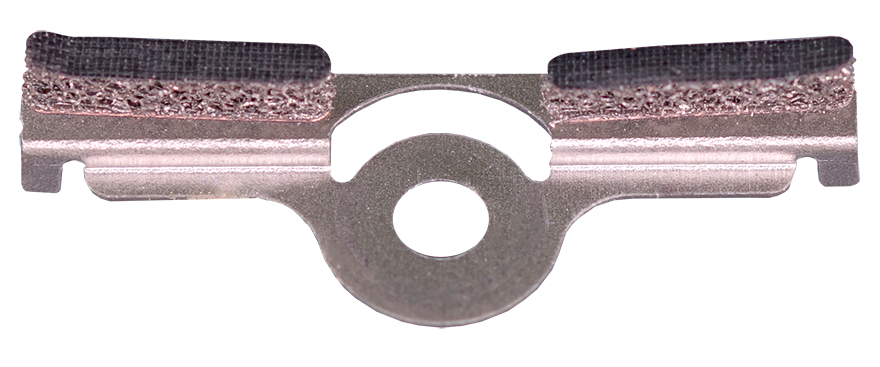

Logic Board Ground Clip 923-00470 for MacBook Retina 12-inch Early 2015
Logic Board Ground Clip
923-00470

Audio Board 923-00413, 923-00440, 923-00441 for MacBook Retina 12-inch Early 2015
Audio Board
923-00413, 923-00440, 923-00441

Display (TCON) Flex Cable Cowling 923-01002 for MacBook Retina 12-inch Early 2015
Display (TCON) Flex Cable Cowling
923-01002

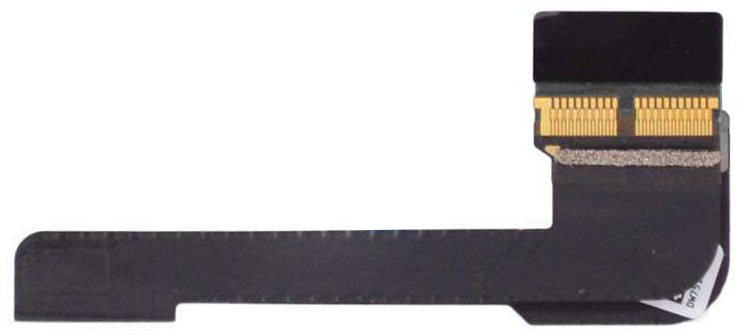

Display (TCON) Board Flex Cable 923-00404 for MacBook Retina 12-inch Early 2015
Display (TCON) Board Flex Cable
923-00404

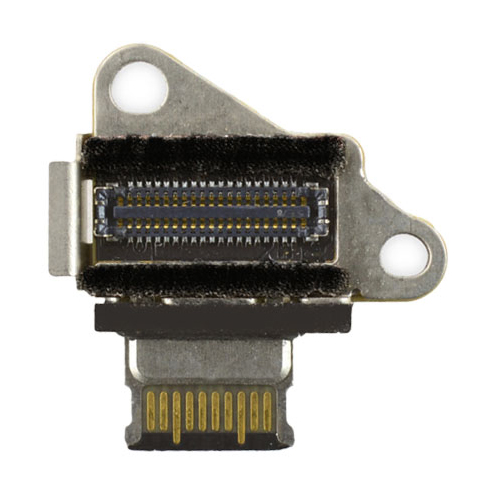

I/O Board 923-00412 for MacBook Retina 12-inch Early 2015
I/O Board
923-00412

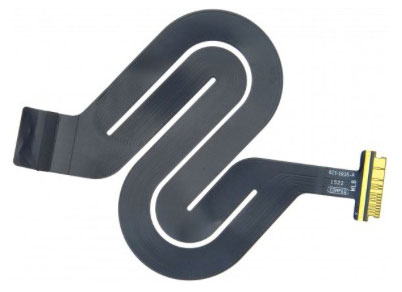

Trackpad (IPD) To Logic Board Flex Cable 923-00407 for MacBook Retina 12-inch Early 2015
Trackpad (IPD) To Logic Board Flex Cable
923-00407
