Exploded View Mac Pro Late 2013

Mac Pro Late 2013 - Exploded View



Housing
923-00527

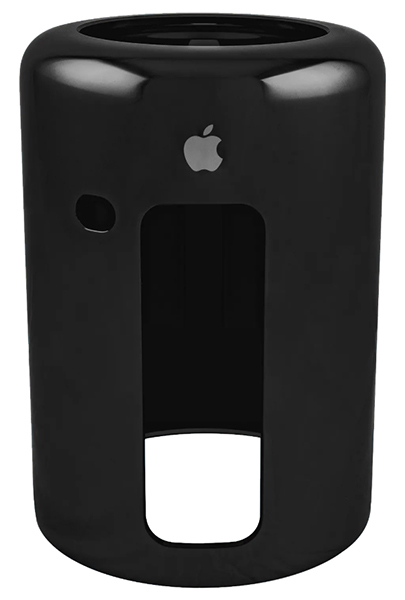

Housing 923-00527 for Mac Pro Late 2013
Logic Board
661-7527

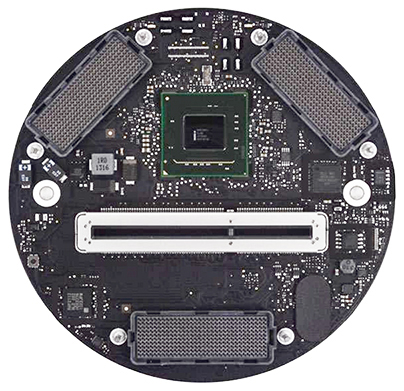

Logic Board 661-7527 for Mac Pro Late 2013
Bottom Cover / Housing (Inlet)
923-0498

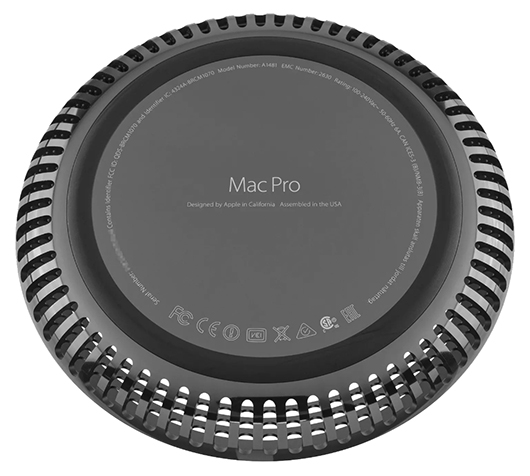

Bottom Cover / Housing (Inlet) 923-0498 for Mac Pro Late 2013
Exhaust Assembly Roof
923-0497

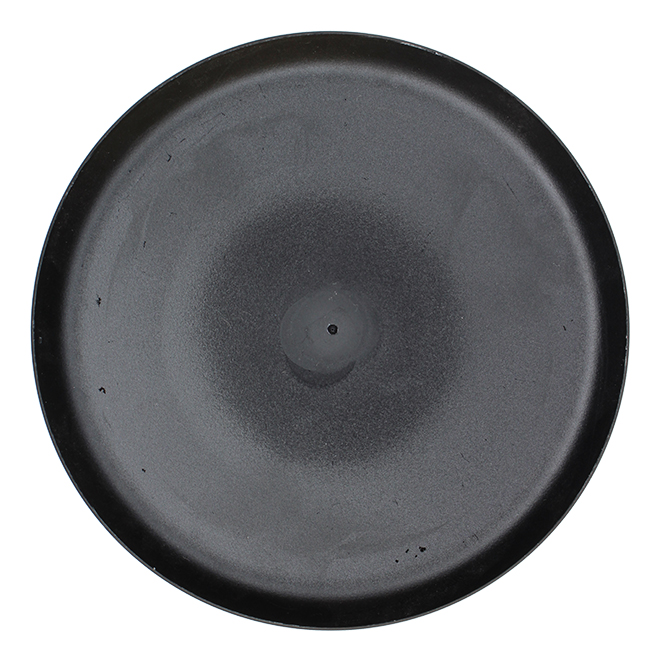

Exhaust Assembly Roof 923-0497 for Mac Pro Late 2013

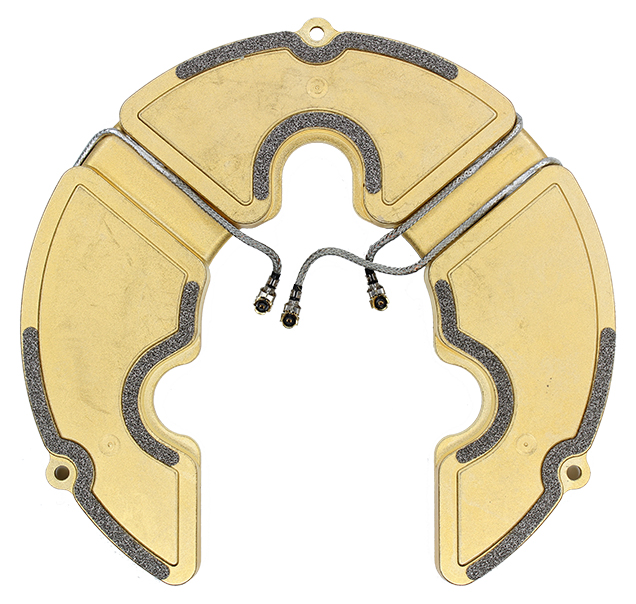

WiFi Antenna
923-0494

WiFi Antenna 923-0494 for Mac Pro Late 2013

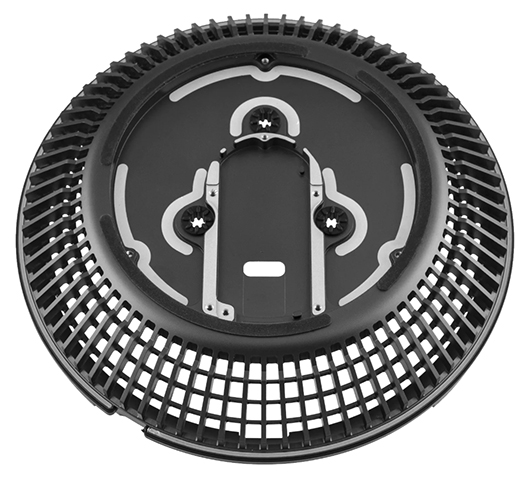

Exhaust Assembly
923-0492

Exhaust Assembly 923-0492 for Mac Pro Late 2013
CPU Fan
923-0491

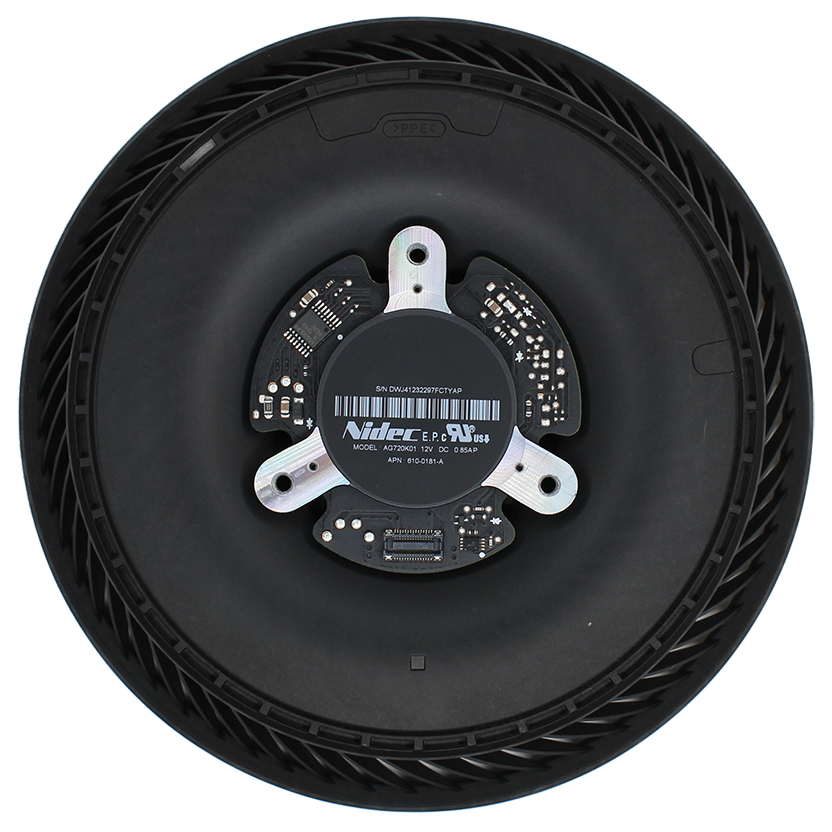

CPU Fan 923-0491 for Mac Pro Late 2013

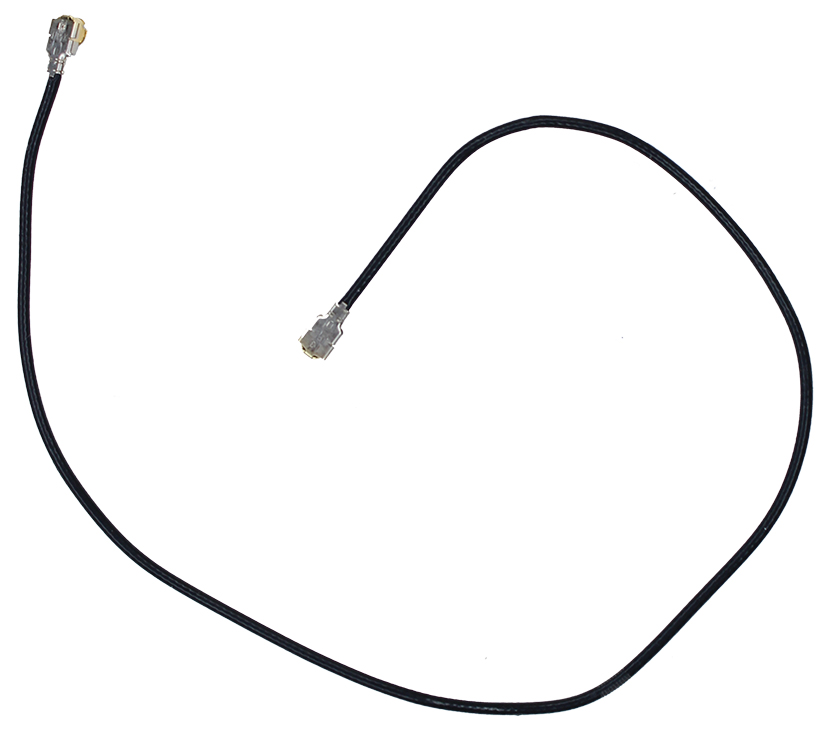

WiFi Antenna Cable
923-0687

WiFi Antenna Cable 923-0687 for Mac Pro Late 2013
Exhaust Manifold
923-0509

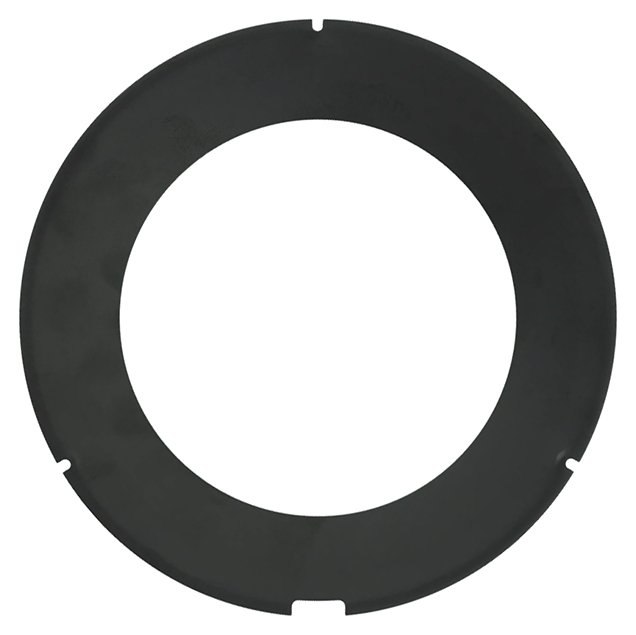

Exhaust Manifold 923-0509 for Mac Pro Late 2013
Power Supply Cover
923-0718

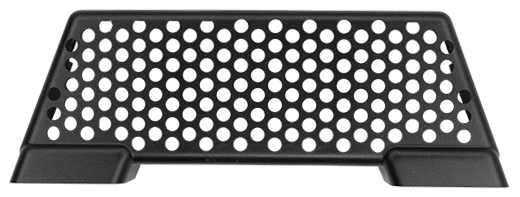

Power Supply Cover 923-0718 for Mac Pro Late 2013
Power Supply w/ Metal Enclosure
661-7542

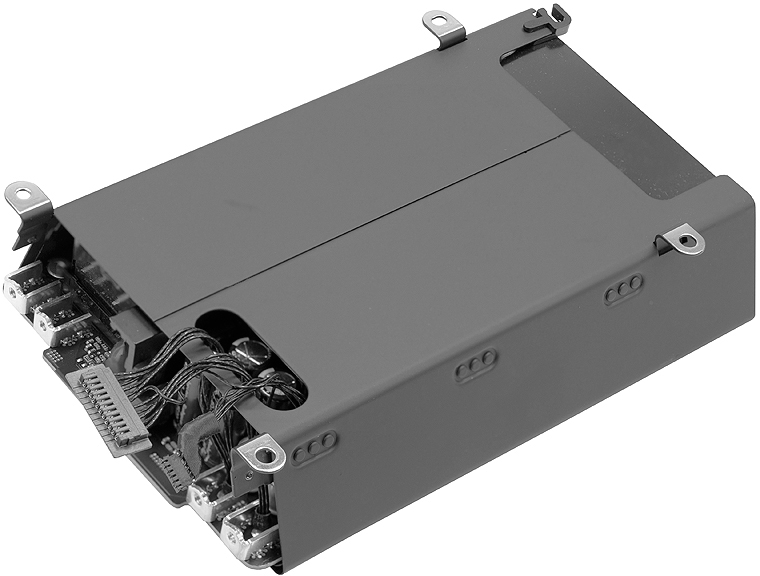

Power Supply w/ Metal Enclosure 661-7542 for Mac Pro Late 2013
I/O Board
661-7553

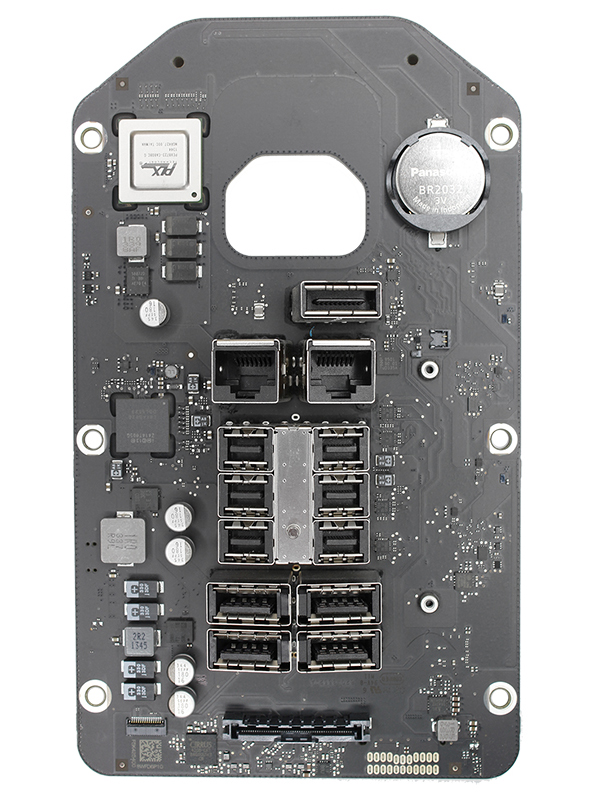

I/O Board 661-7553 for Mac Pro Late 2013
I/O Ports EMI Shield
923-0688

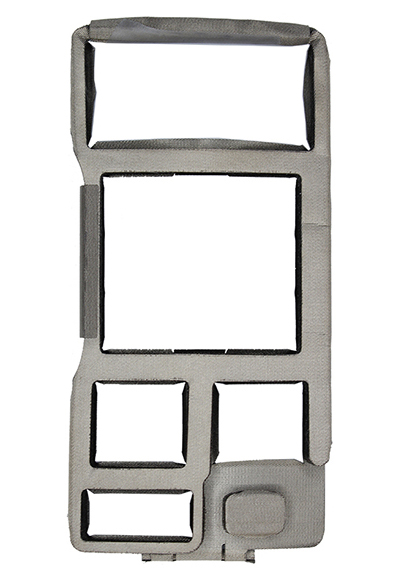

I/O Ports EMI Shield 923-0688 for Mac Pro Late 2013
I/O Wall / Panel
923-00466

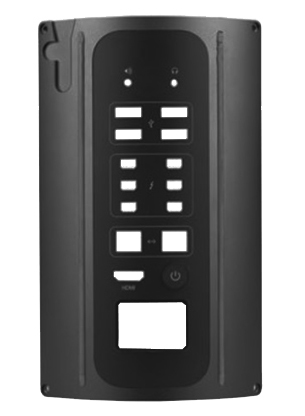

I/O Wall / Panel 923-00466 for Mac Pro Late 2013
Graphics/Video A Card AMD Firepro
661-7531, 661-7532, 661-7533

Graphics/Video A Card AMD Firepro 661-7531, 661-7532, 661-7533 for Mac Pro Late 2013
Graphics/Video B Card AMD Firepro
661-7547, 661-7548, 661-7549

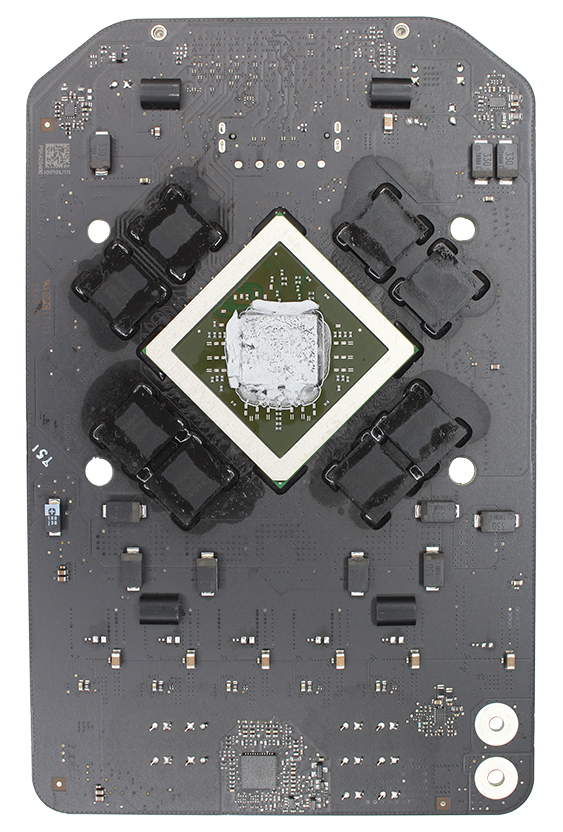

Graphics/Video B Card AMD Firepro 661-7547, 661-7548, 661-7549 for Mac Pro Late 2013
Power Cord Cable
923-0511, 923-0535

Power Cord Cable 923-0511, 923-0535 for Mac Pro Late 2013

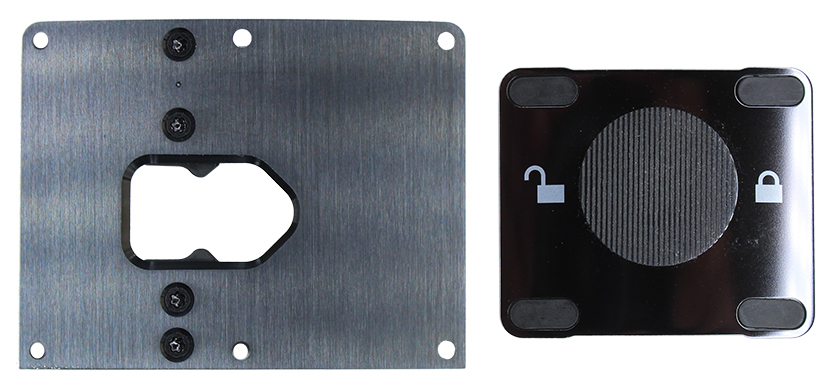

Housing Locking Mechanism 923-0499 for Mac Pro Late 2013
Housing Locking Mechanism
923-0499

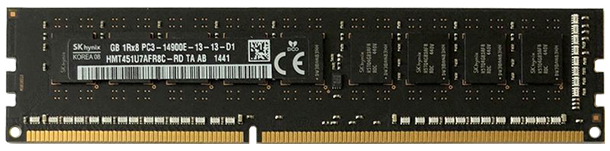

Memory RAM DDR3L-1866MHz 661-7534, 661-7535, 661-7536 for Mac Pro Late 2013
Memory RAM DDR3L-1866MHz
661-7534, 661-7535, 661-7536

Solid State Drive (SSD) PCIe 661-03525, 661-7456, 661-7459, 661-7462, 661-7540 for Mac Pro Late 2013
Solid State Drive (SSD) PCIe
661-03525, 661-7456, 661-7459, 661-7462, 661-7540

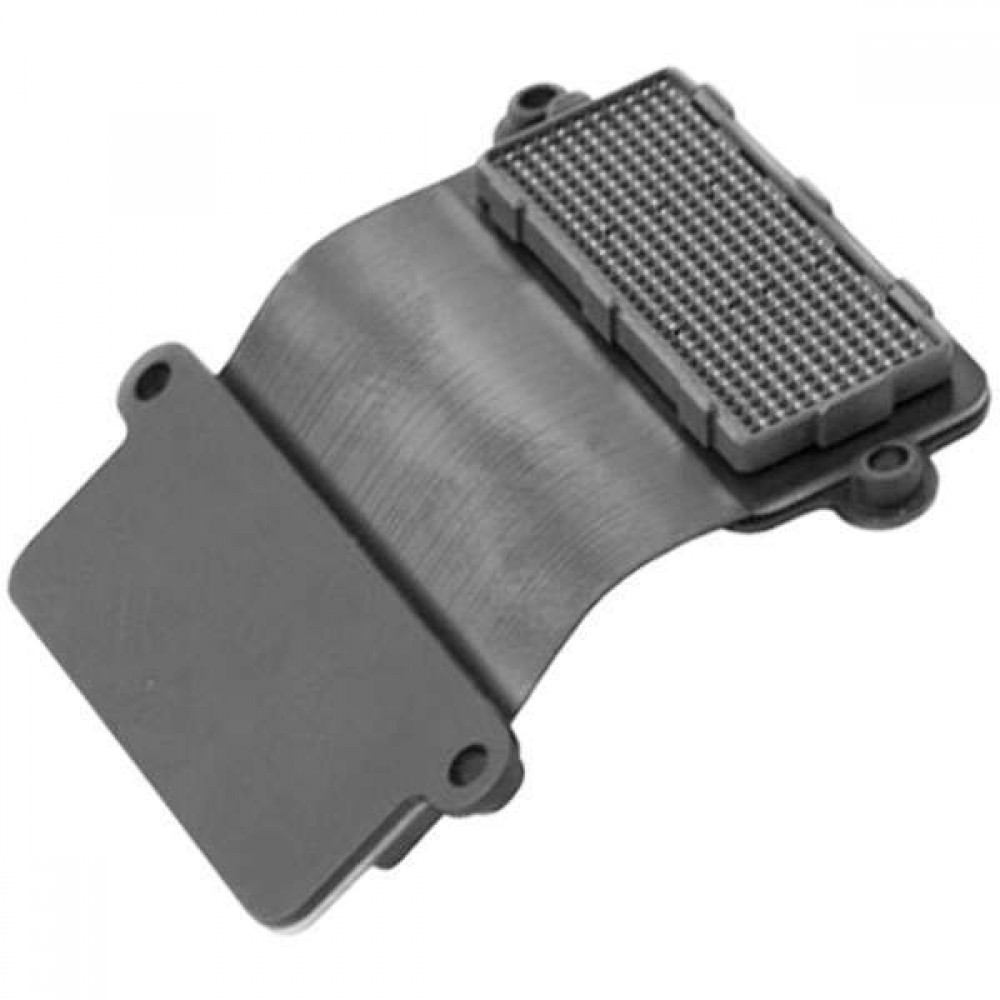

Graphics/Video Card Flex Cable 923-0500 for Mac Pro Late 2013
Graphics/Video Card Flex Cable
923-0500

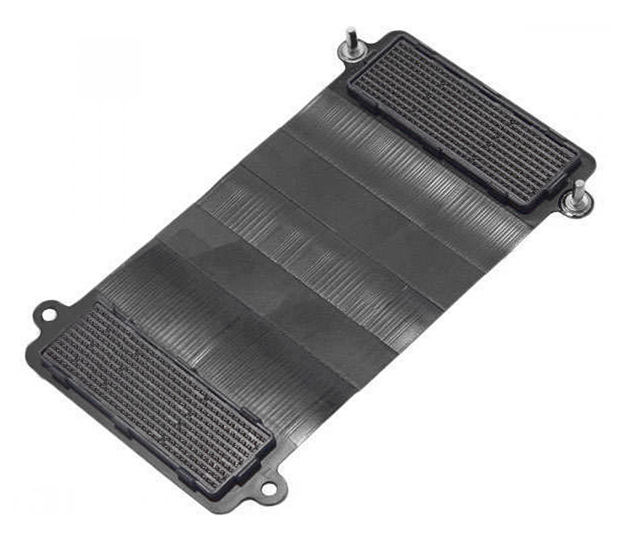

I/O Board Flex Cable 923-0501 for Mac Pro Late 2013
I/O Board Flex Cable
923-0501

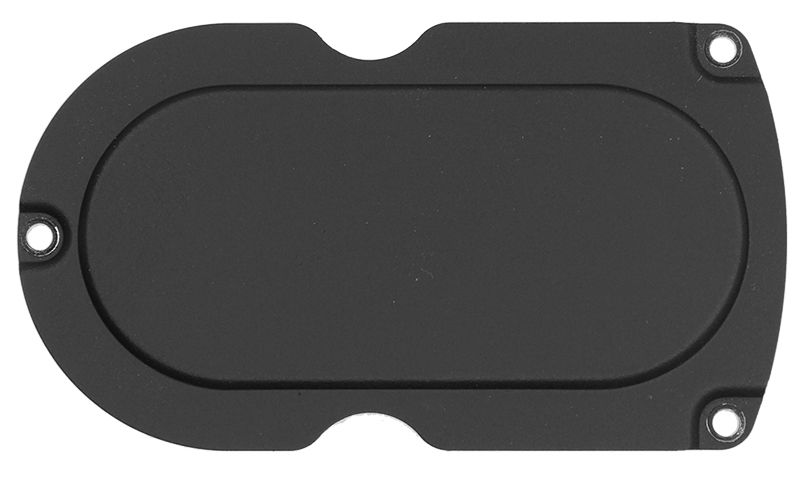

Interposer Board Cover 923-0495 for Mac Pro Late 2013
Interposer Board Cover
923-0495

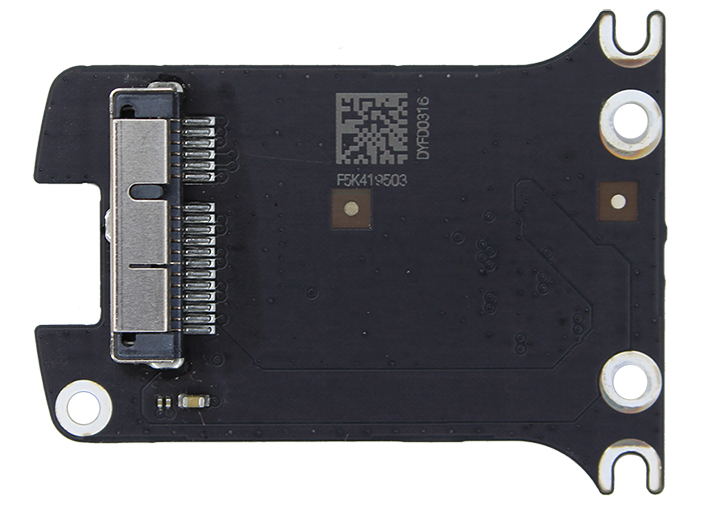

Interposer Board 923-0493 for Mac Pro Late 2013
Interposer Board
923-0493

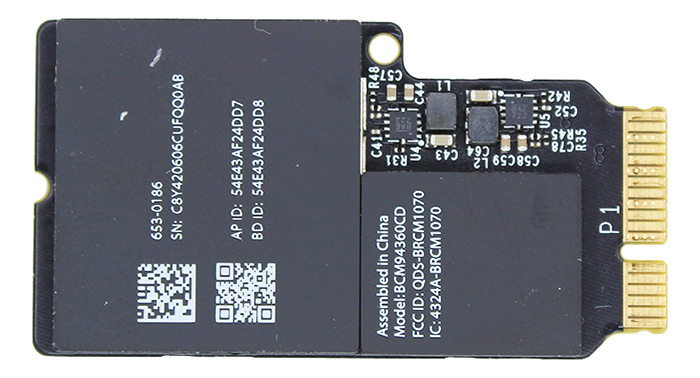

Wireless (Airport/Bluetooth) Card 661-7552 for Mac Pro Late 2013
Wireless (Airport/Bluetooth) Card
661-7552

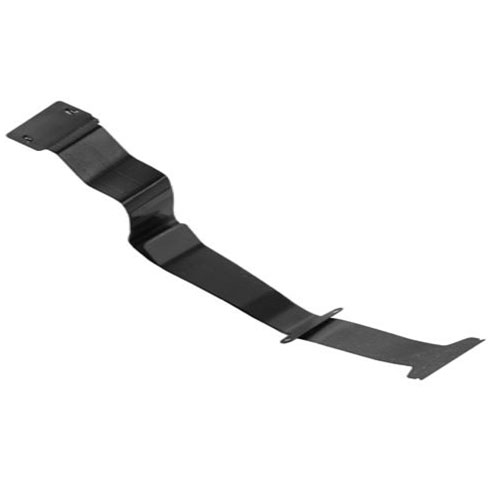

Interposer Board Flex Cable 923-0496 for Mac Pro Late 2013
Interposer Board Flex Cable
923-0496

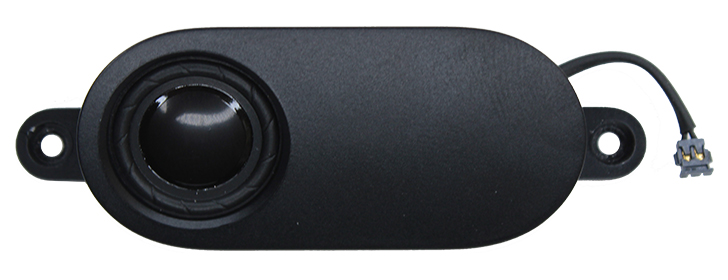

Speaker 923-0504 for Mac Pro Late 2013
Speaker
923-0504

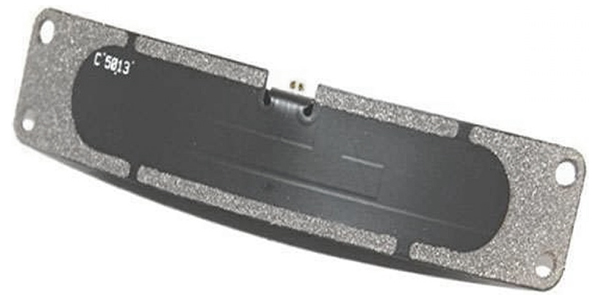

Bluetooth Antenna 923-0507 for Mac Pro Late 2013
Bluetooth Antenna
923-0507

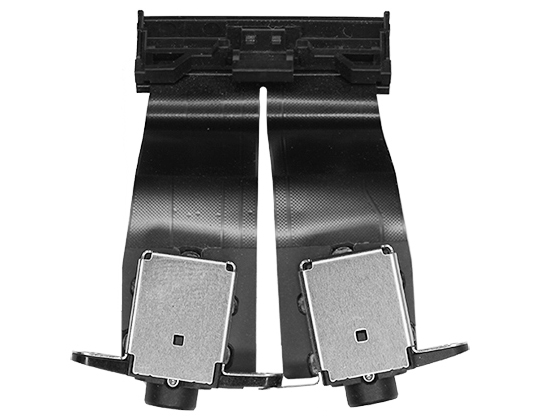

Audio Jack 923-0503 for Mac Pro Late 2013
Audio Jack
923-0503

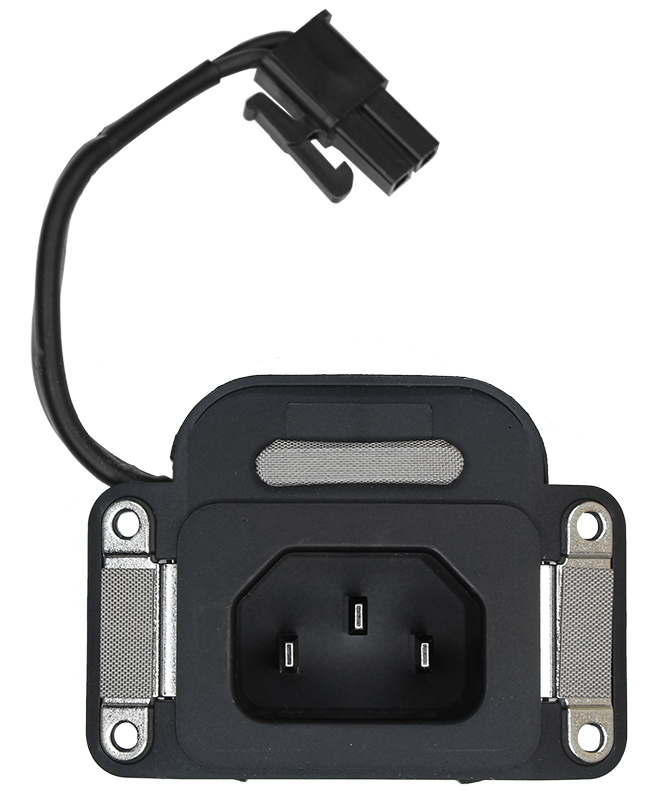

AC Power Inlet 923-0505 for Mac Pro Late 2013
AC Power Inlet
923-0505

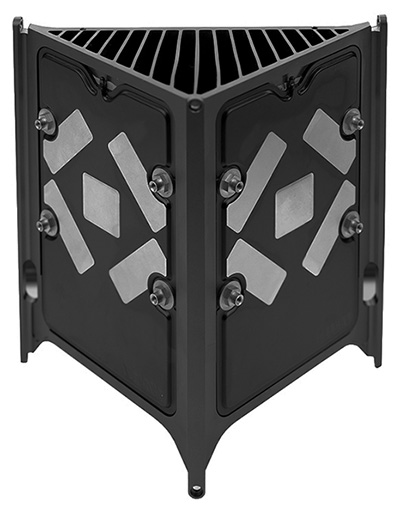

Thermal Core 923-0534 for Mac Pro Late 2013
Thermal Core
923-0534

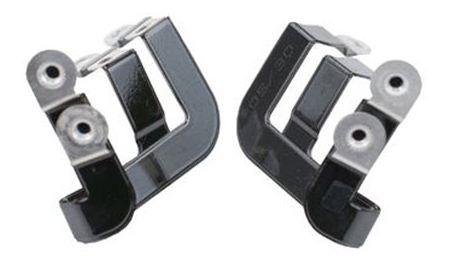

Graphics/Video Card Bus Bars (A and B) 923-0684 for Mac Pro Late 2013
Graphics/Video Card Bus Bars (A and B)
923-0684

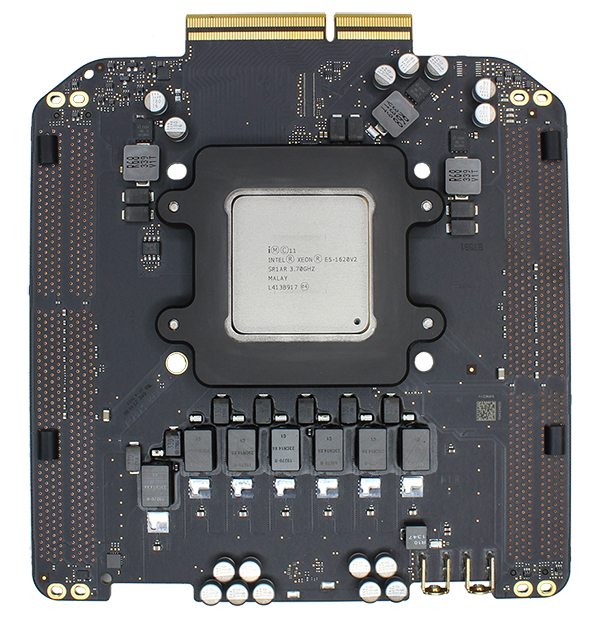

CPU Raiser Card w/ CPU Xeon 661-7543, 661-7544, 661-7545, 661-7546 for Mac Pro Late 2013
CPU Raiser Card w/ CPU Xeon
661-7543, 661-7544, 661-7545, 661-7546

Memory (DIMM) Mechanism, Right 923-0512 for Mac Pro Late 2013
Memory (DIMM) Mechanism, Right
923-0512
