Exploded View Mac mini Mid 2011 Server

Mac mini Mid 2011 Server - Exploded View



Bottom Cover
922-9951

Bottom Cover 922-9951 for Mac mini Mid 2011 Server
CPU Cooling Fan
922-9953

CPU Cooling Fan 922-9953 for Mac mini Mid 2011 Server
Cowling
922-9568

Cowling 922-9568 for Mac mini Mid 2011 Server
Antenna Plate
922-9952

Antenna Plate 922-9952 for Mac mini Mid 2011 Server

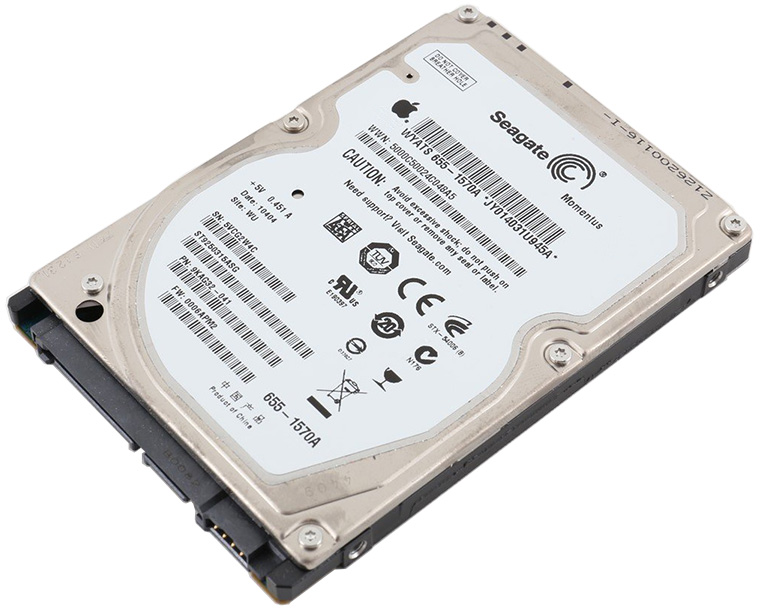

Hard Drive / Solid State SATA
661-01029, 661-05338, 661-6041, 661-6042, 661-6044, 661-6046, 661-6500, 661-6591, 661-7024, 661-7026

Hard Drive / Solid State SATA 661-01029, 661-05338, 661-6041, 661-6042, 661-6044, 661-6046, 661-6500, 661-6591, 661-7024, 661-7026 for Mac mini Mid 2011 Server
Hard Drive Carrier w/ Grommets
922-9961

Hard Drive Carrier w/ Grommets 922-9961 for Mac mini Mid 2011 Server
Infrared (IR) Board w/ Cable
922-9558

Infrared (IR) Board w/ Cable 922-9558 for Mac mini Mid 2011 Server

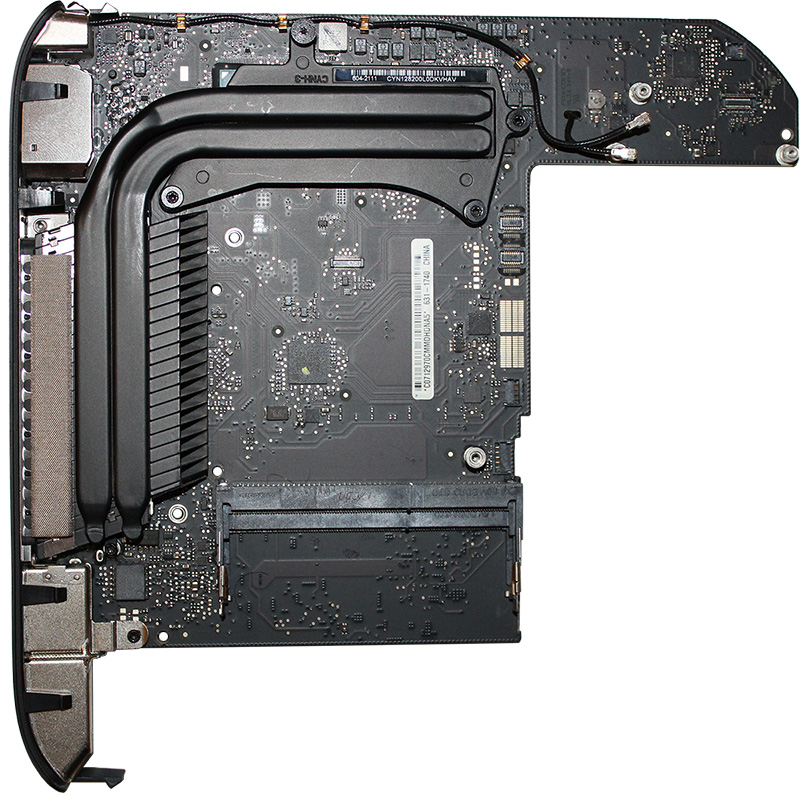

Logic Board 2.0GHz Quad Core i7
661-6034

Logic Board 2.0GHz Quad Core i7 661-6034 for Mac mini Mid 2011 Server

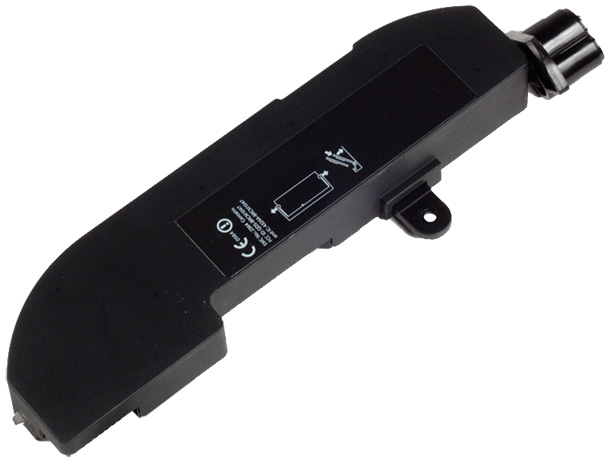

Power Supply
661-6038

Power Supply 661-6038 for Mac mini Mid 2011 Server
Housing / Enclosure
922-9950

Housing / Enclosure 922-9950 for Mac mini Mid 2011 Server
Memory RAM DDR3-1333MHz 661-6035, 661-6036, 661-6037 for Mac mini Mid 2011 Server
Memory RAM DDR3-1333MHz
661-6035, 661-6036, 661-6037

Airport/Bluetooth Wireless Card 661-6040 for Mac mini Mid 2011 Server
Airport/Bluetooth Wireless Card
661-6040

AirPort Card Flex Cable 922-9960 for Mac mini Mid 2011 Server
AirPort Card Flex Cable
922-9960

Speaker 076-1424 for Mac mini Mid 2011 Server
Speaker
076-1424

Flex Cable, SATA Hard Drive/SSD, Lower Bay 076-1390 for Mac mini Mid 2011 Server
Flex Cable, SATA Hard Drive/SSD, Lower Bay
076-1390

Flex Cable, SATA Hard Drive/SSD, Upper Bay 076-1391 for Mac mini Mid 2011 Server
Flex Cable, SATA Hard Drive/SSD, Upper Bay
076-1391

AC Cable Retention Clip 922-9569 for Mac mini Mid 2011 Server
AC Cable Retention Clip
922-9569

Power Supply Cable, Internal 922-9563 for Mac mini Mid 2011 Server
Power Supply Cable, Internal
922-9563
